1 1/2" Flanged PWR-FLO™ AODD Pump, Polypropylene w/ Viton/FKM Diaphragm
1 1/2" Flanged PWR-FLO™ AODD Pump, Polypropylene w/ Viton/FKM Diaphragm
SKU:MAN-bdd99e
Efficient and reliable 1.5" Flanged PWR-FLO AODD Pump by NOMAD for industrial fluid handling.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
1 1/2" Flanged PWR-FLO™ AODD Pump, Polypropylene w/ Viton/FKM Diaphragm
$899.99
Quantity: 1
Claim Your Seller Account
1 1/2" Flanged PWR-FLO™ AODD Pump, Polypropylene w/ Viton/FKM Diaphragm
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

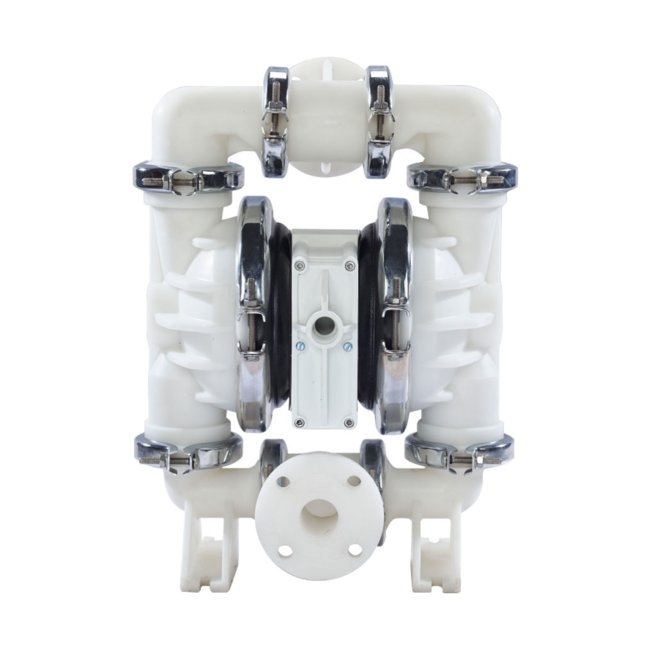

The 1 1/2" Flanged PWR-FLO™ AODD Pump by NOMAD® is a drop-in replacement for Wilden® AODD pumps, offering efficient handling of large solids and slurries. Constructed with chemically resistant polypropylene and featuring Viton/FKM diaphragms, this pump ensures reliable on/off liquid transfer for filling and batching applications. With a maximum flow rate of 92 gpm, this pump excels in performance and durability, meeting the highest quality standards for industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

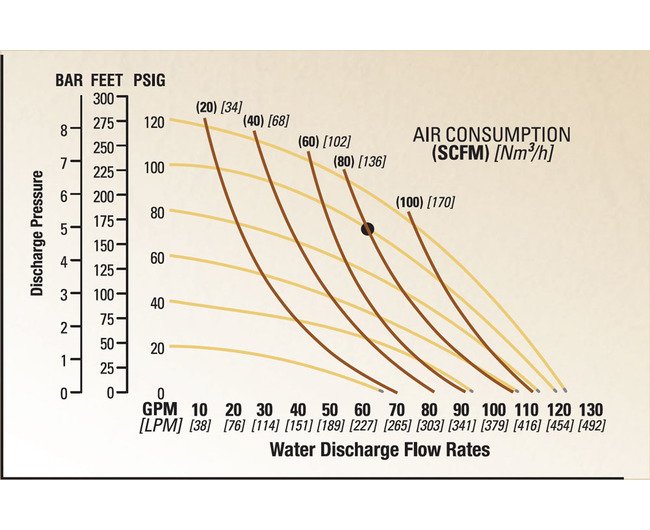

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
Viton/FKM
Specifications Check Valve Seat
Polypropylene
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Viton/FKM
Specifications Displacement Per Cycle
0.314 gal | 1.19 lit
Specifications Elastomers
Viton Encapsulated, Viton/FKM, Viton/FKM
Specifications Fluid Inlet Size
1.5 Flanged in | 38 Flanged mm
Specifications Fluid Outlet Size
1.5 Flanged in | 38 Flanged mm
Specifications Height
21 Inch | 21 in | 528.32 mm
Specifications Length
21 Inch | 21 in | 0.5283 m | 528.32 mm
Specifications Max Flow Rate
92 gpm | 348.26 lpm
Specifications Moc
Polypropylene
Specifications Model
NPF40/PCPP/VT/VT/PTV/FL/C
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
40-22681-13
Specifications Solids Handling
0.1875 in | 5 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
11 Inch | 11 in | 0.2845 m | 284.48 mm
