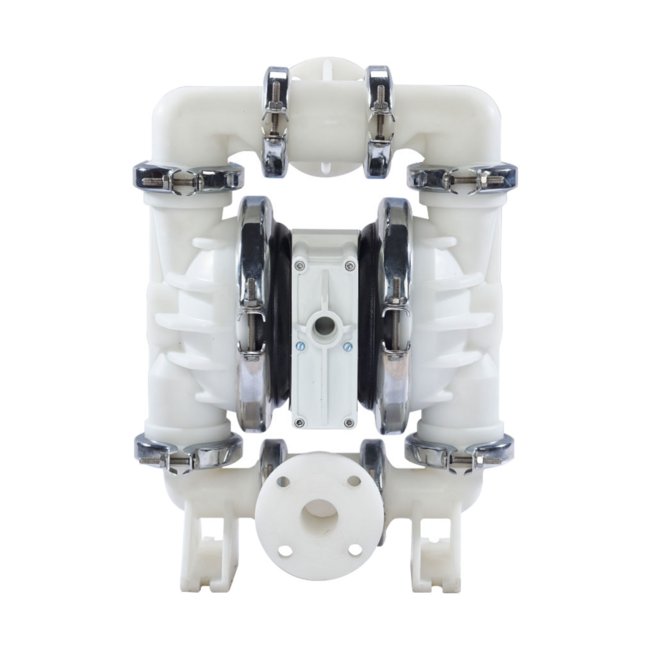

1 1/2" Flanged PWR-FLO™ AODD Pump with Polypropylene and Santoprene Diaphragm
1 1/2" Flanged PWR-FLO™ AODD Pump with Polypropylene and Santoprene Diaphragm
SKU:MAN-d89381
Efficient and reliable 1 1/2'' Flanged PWR-FLO™ AODD Pump for various liquid transfer applications. Chemically resistant polypropylene construction ensures durability and performance.
Regular price
$1,550.99
Regular price
Sale price
$1,550.99
Unit price
per
Initiate Order
1 1/2" Flanged PWR-FLO™ AODD Pump with Polypropylene and Santoprene Diaphragm
$1,550.99
Quantity: 1
Claim Your Seller Account
1 1/2" Flanged PWR-FLO™ AODD Pump with Polypropylene and Santoprene Diaphragm
$1,550.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1 1/2" Flanged PWR-FLO™ AODD Pump from the NOMAD® PWR-FLO™ series is a robust solution designed to meet the demands of both consumer and institutional buyers. This pump serves as a drop-in replacement for Wilden® AODD pumps of equivalent make and size, ensuring seamless integration. With an air-driven double diaphragm mechanism capable of handling large solids and slurries, it excels in various applications including filling, batching, and on/off liquid transfer. Crafted with chemically resistant polypropylene, the air valve and center section ensure durability and reliability. The asymmetrical spool design (ASD) enhances operational efficiency, making it an ideal choice for critical operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

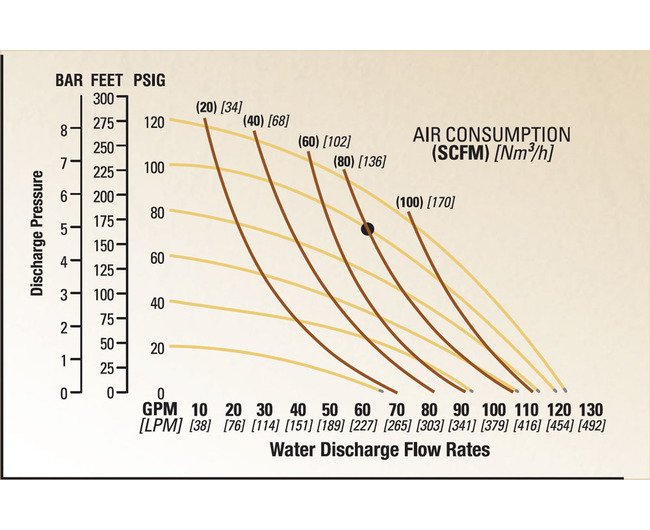

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
Santoprene®
Specifications Check Valve Seat
Polypropylene
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Santoprene®
Specifications Displacement Per Cycle
0.314 gal | 1.19 lit
Specifications Elastomers
Santoprene, Santoprene®, Santoprene®
Specifications Fluid Inlet Size
1.5 Flanged in | 38 Flanged mm
Specifications Fluid Outlet Size
1.5 Flanged in | 38 Flanged mm
Specifications Height
21 Inch | 21 in | 528.32 mm
Specifications Length
21 Inch | 21 in | 0.5283 m | 528.32 mm
Specifications Max Flow Rate
92 gpm | 348.26 lpm
Specifications Moc
Polypropylene
Specifications Model
NPF40/PCPP/SN/SN/PSN/FL/C
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
40-22691-13
Specifications Solids Handling
0.1875 in | 5 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
11 Inch | 11 in | 0.2845 m | 284.48 mm
