1-1/2 Inch Light Duty Line Vac Conveyor

Name: 1-1/2 Inch Light Duty Line Vac Conveyor
Brand: Exair LLC
SKU: LIG-b703ea
Price: 249.99 USD
Availability: OutOfStock

SKU:LIG-b703ea

Efficiently convey materials with the 1-1/2 Inch Light Duty Line Vac Conveyor by EXAIR. Ideal for short distances, compact and durable for various industrial applications.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

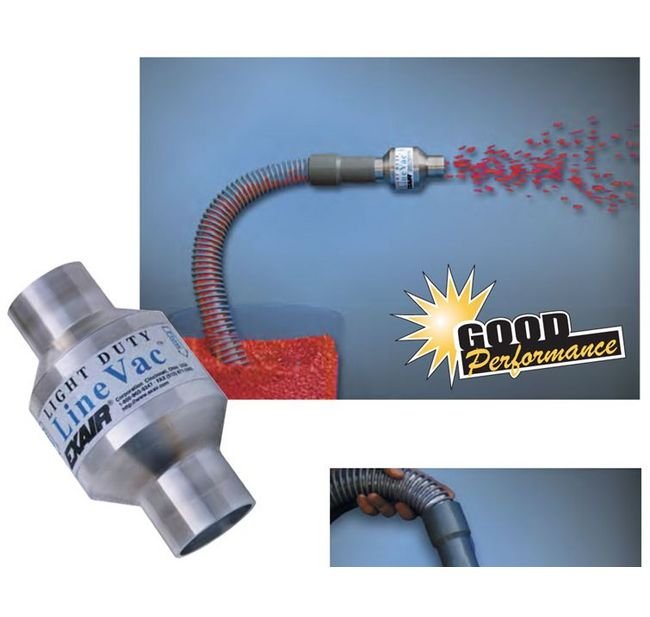

The 1-1/2 Inch Light Duty Line Vac Conveyor by EXAIR is a versatile solution for conveying small volumes of materials over short distances. Constructed from durable aluminum, this conveyor features an inlet size of 1-1/2 inches, pressure rating of 80 psig, and an air consumption of 20 SCFM. With applications ranging from chip removal to waste/trim removal, this compact conveyor offers moderate throughput capability without any moving parts, ensuring quiet operation and efficient material handling. Suitable for various industries, it seamlessly integrates with standard hoses or tubes, providing a reliable and cost-effective conveying solution.

Product Specifications

Specifications Advantages

Specifications Air Consumption

20 SCFM | 566 SLPM

Specifications Applications

Specifications Dimension E

2.41 in | 61 mm

Specifications Dimension F

1.06 in | 27 mm

Specifications Dimension G

3/8 NPT

Specifications Inlet Size

1-1/2 in | 38 mm

Specifications Inside Diameter

1.25 in | 32 mm

Specifications Outlet Diameter

1-1/2 in | 38 mm

Specifications Outside Diameter

2.75 in | 70 mm

Specifications Overall Length

4.63 in | 117 mm

Specifications Pressure

80 psig | 5.5 bar

1-1/2 Inch Light Duty Line Vac Conveyor
