1-1/2" Loaded U-Cup Seal - B Style

1-1/2" Loaded U-Cup Seal - B Style

UCU-ea81ab

Enhance your equipment with the 1-1/2" Loaded U-Cup Seal for superior pressure and temperature resistance.

$12.99
$12.99
Sale

Initiate Order

1-1/2" Loaded U-Cup Seal - B Style

1-1/2" Loaded U-Cup Seal - B Style

$12.99

Quantity: 1

Claim Your Seller Account

1-1/2" Loaded U-Cup Seal - B Style

1-1/2" Loaded U-Cup Seal - B Style

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

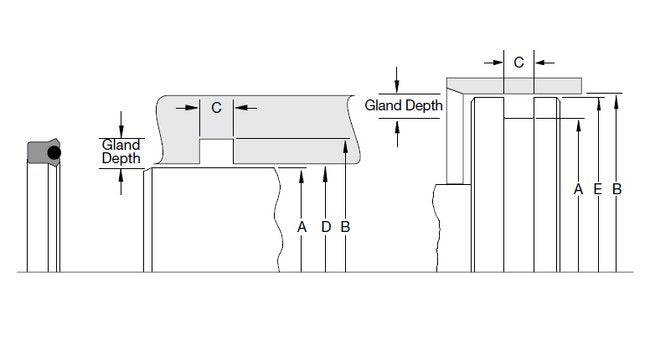

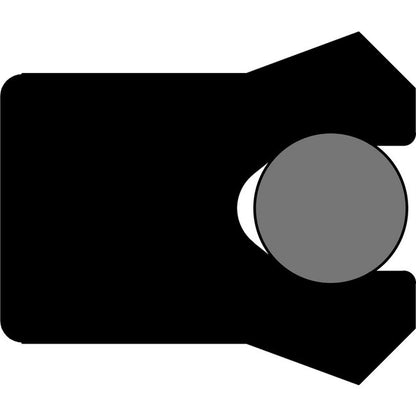

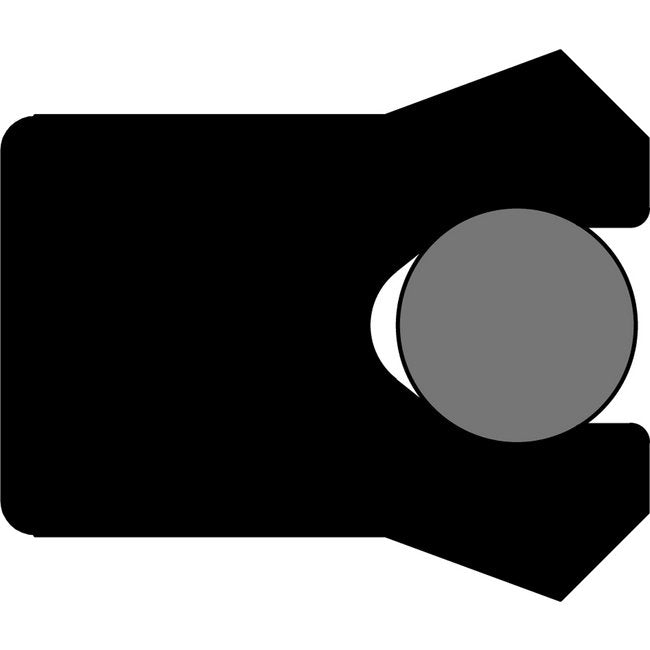

Upgrade your rod and piston applications with this 1-1/2" Inside Diameter, 1-7/8" Outside Diameter, 1/4" Height B Style Loaded U-Cup Seal. With a working pressure range of 0 to 5000 psi and a temperature tolerance from -65ºF to +200ºF, this urethane seal excels in diverse environments. Its U-cup shape ensures a secure fit and longevity. Ideal for retrofitting seal grooves, this seal guarantees reliable performance and durability.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Technical Specs Alternate Part
461518701500-250B | 75085502 | 8835310 | U18-1.50-25B
Technical Specs Height
1/4 in
Technical Specs Inside Diameter
1-1/2 in
Technical Specs Outside Diameter
1-7/8 in
Technical Specs Package Type
Each
Technical Specs Pressure
0 to 5000 psi
Technical Specs Shape
U-Cup
Technical Specs Style
B
Technical Specs Temperature
-65 to +200 ºF
