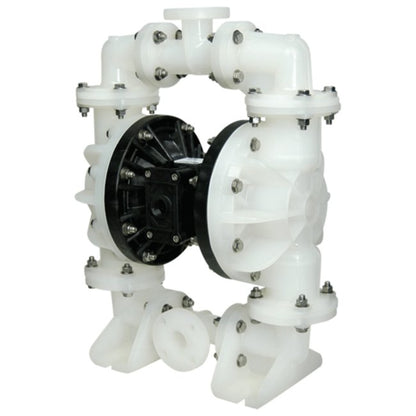

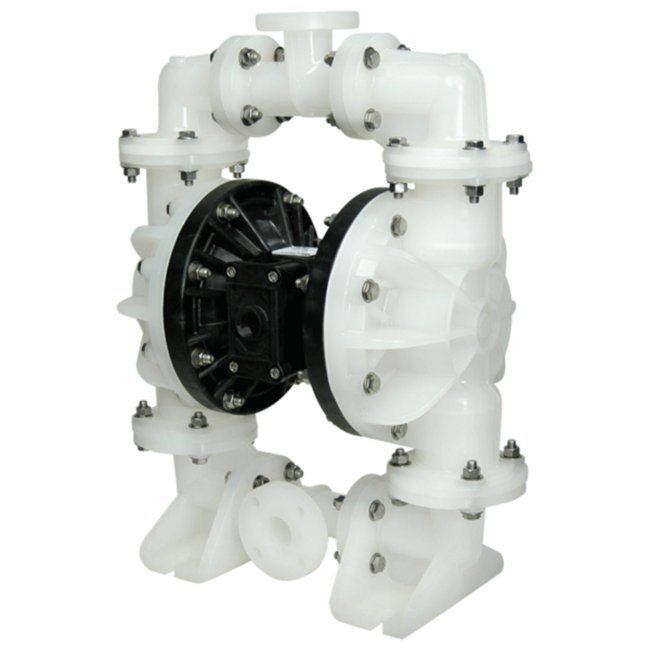

1 1/2" Poly Ball Valve Diaphragm Pump
1 1/2" Poly Ball Valve Diaphragm Pump
SKU:PRO-2cc3c0
Durable 1 1/2" Poly Ball Valve Pump for abrasive fluids. Top discharge, 100 gpm flow rate. Ideal for waste water handling.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
1 1/2" Poly Ball Valve Diaphragm Pump
$799.99
Quantity: 1
Claim Your Seller Account
1 1/2" Poly Ball Valve Diaphragm Pump
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1 1/2" Standard Duty S15 Top Discharge Poly Ball Valve Pump is designed for intermittent use with moderately abrasive fluids and solids. Constructed with Polypropylene wetted materials for durability. Options for TPE and PTFE diaphragms ensure versatile applications. Max flow rate of 100 gpm. Ideal for waste water management and utility applications.
Product Specifications
Curves 0

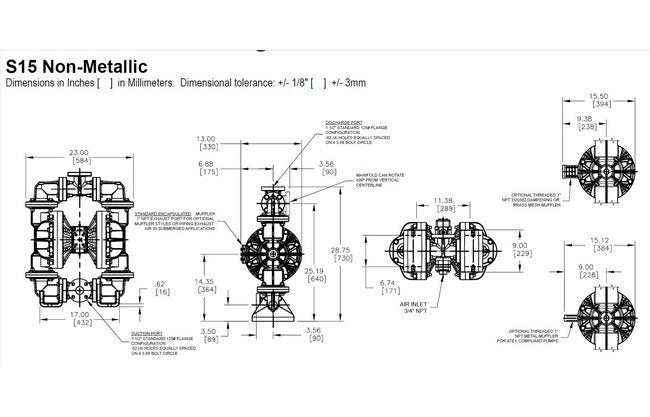

Dimensions 0
Dimensions
Specifications Check Valve Seat
Polypropylene
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Displacement Per Stroke
0.43 gal | 1.63 lit
Specifications Height
29 in | 730.25 mm
Specifications Inlet Size
1.5 Universal ANSI/DIN Flange in | 38 Universal ANSI/DIN Flange mm
Specifications Length
23 in | 0.5842 m | 584.20 mm
Specifications Max Flow Rate
100 gpm | 6000.00 gph | 378.54 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Porting Position
Top Discharge
Specifications Sku
WRS15B3PNPPUS0SBSP
Specifications Solids Handling
0.47 in | 12 mm
Specifications Weight
82 lbs | 37.19 kg | 37.19 Kilogram
Specifications Wetted Moc
Polypropylene
Specifications Width
13 in | 0.3302 m | 330.20 mm
Category 6
Standard Duty Diaphragm Pumps
