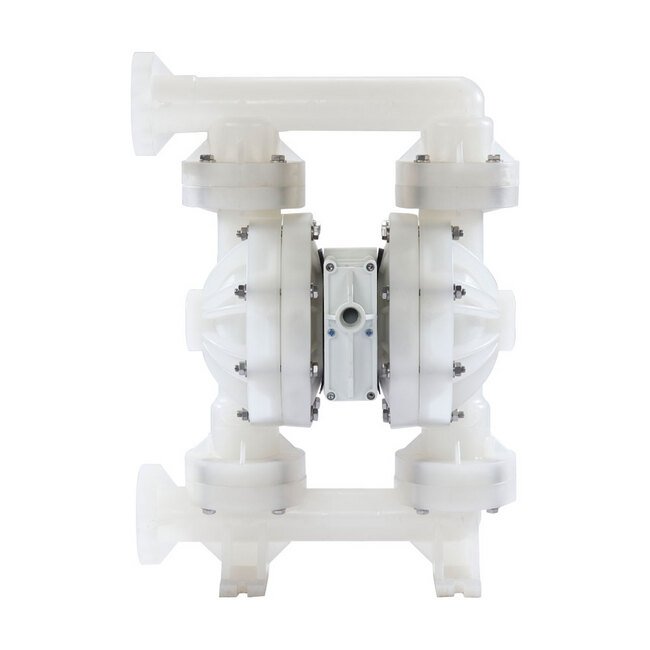

1 1/2" Polypropylene Pwr-Flo™ AODD Pump with Hytrel® Diaphragm
1 1/2" Polypropylene Pwr-Flo™ AODD Pump with Hytrel® Diaphragm
SKU:MAN-492b26
Efficient and reliable 1 1/2" Polypropylene AODD Pump with Hytrel® Diaphragm for industrial fluid handling.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
1 1/2" Polypropylene Pwr-Flo™ AODD Pump with Hytrel® Diaphragm
$549.99
Quantity: 1
Claim Your Seller Account
1 1/2" Polypropylene Pwr-Flo™ AODD Pump with Hytrel® Diaphragm
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1 1/2" Polypropylene Pwr-Flo™ AODD Pump, featuring a Hytrel® Diaphragm, is a reliable and efficient solution for industrial fluid handling. Designed as a drop-in replacement for Wilden® AODD pumps, this air-driven double diaphragm pump excels in handling large solids and slurries. The PWR-FLO™ asymmetrical spool design ensures an efficient air system, enhancing reliability in liquid transfer applications. With a chemically resistant polypropylene construction and Viton® and Hytrel® elastomers, this pump offers durability and high performance. The pump's specifications include a maximum flow rate of 84 gpm, solids handling of 0.25 inches, and a displacement of 0.15 gallons per cycle.
Product Specifications
Curves 0

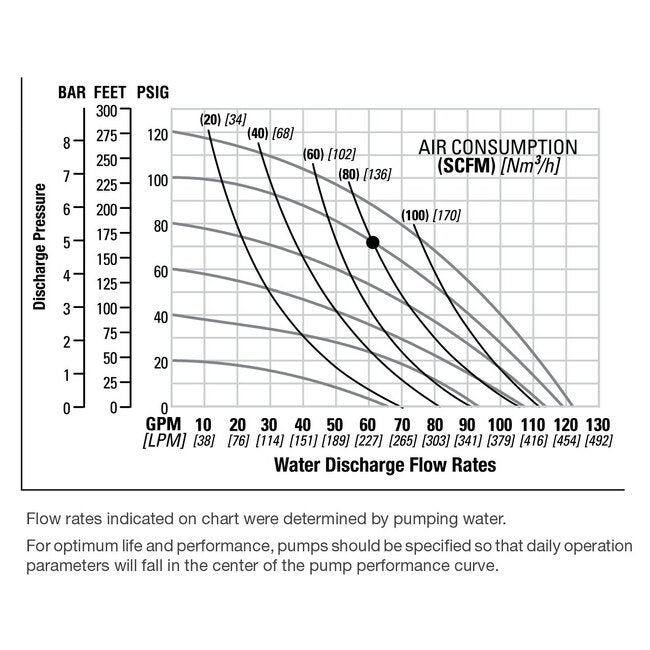

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Polypropylene
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Hytrel®
Specifications Displacement Per Cycle
0.15 gal | 0.57 lit
Specifications Elastomers
Viton®, Hytrel®
Specifications Fluid Inlet Size
1.5 in | 38 mm
Specifications Fluid Outlet Size
1.5 Flange in | 38 Flange mm
Specifications Height
26 Inch | 26 in | 668.02 mm
Specifications Length
12 Inch | 12 in | 0.2997 m | 299.72 mm
Specifications Max Flow Rate
84 gpm | 317.97 lpm
Specifications Model
NPF40/PPPP/FG/FG/PVT/FL/B
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
40-12664-1
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
19 Inch | 19 in | 0.4775 m | 477.52 mm
