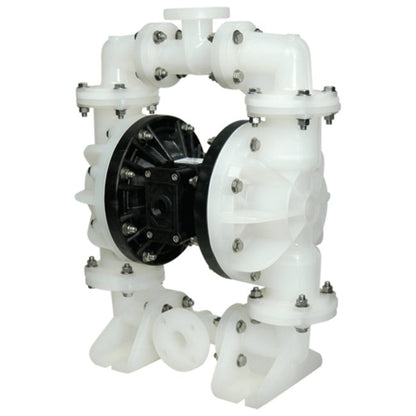

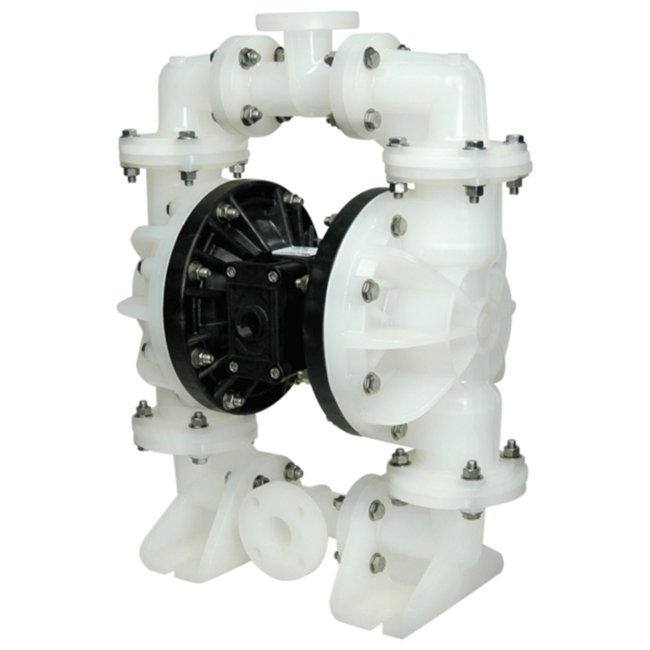

1 1/2" PVDF Ball Valve Diaphragm Pump
1 1/2" PVDF Ball Valve Diaphragm Pump
SKU:PRO-8ca06a
Reliable 1 1/2" PVDF Ball Valve Diaphragm Pump for waste water applications with top discharge porting, 100 gpm flow rate, and chemical-resistant design.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
1 1/2" PVDF Ball Valve Diaphragm Pump
$1,499.99
Quantity: 1
Claim Your Seller Account
1 1/2" PVDF Ball Valve Diaphragm Pump
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1 1/2" PVDF Ball Valve Diaphragm Pump is a top discharge pump designed for intermittent, portable applications with moderately abrasive fluids. Constructed with PVDF wetted M.O.C. and PVDF check valve seat, it offers durability and chemical resistance. Features include a max. flow rate of 100 gpm, top discharge porting position, and solids handling capacity of 0.47 inches. This pump ensures reliable performance in waste water applications and meets industry standards for quality and efficiency.
Product Specifications
Curves 0
Dimensions 0

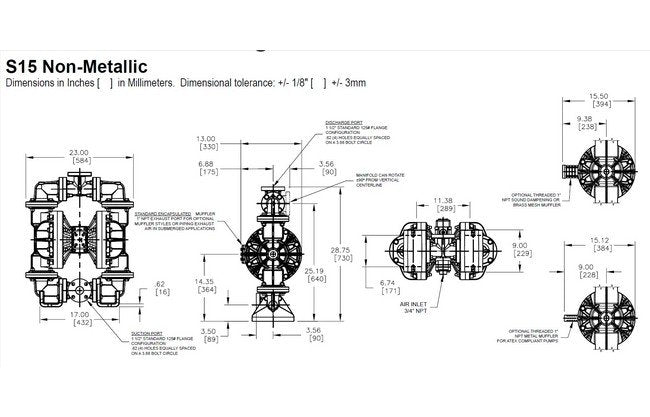

Dimensions
Specifications Check Valve Seat
PVDF
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Displacement Per Stroke
0.43 gal | 1.63 lit
Specifications Height
29 in | 730.25 mm
Specifications Inlet Size
1.5 Universal ANSI/DIN Flange in | 38 Universal ANSI/DIN Flange mm
Specifications Length
23 in | 0.5842 m | 584.20 mm
Specifications Max Flow Rate
100 gpm | 6000.00 gph | 378.54 lpm
Specifications Non Wetted Material
Polypropylene with PTFE Coated Hardware
Specifications Porting Position
Top Discharge
Specifications Sku
WRS15B3K1K1US000SP
Specifications Solids Handling
0.47 in | 12 mm
Specifications Weight
112 lbs | 50.80 kg | 50.80 Kilogram
Specifications Wetted Moc
PVDF
Specifications Width
13 in | 0.3302 m | 330.20 mm
Category 6
Standard Duty Diaphragm Pumps
