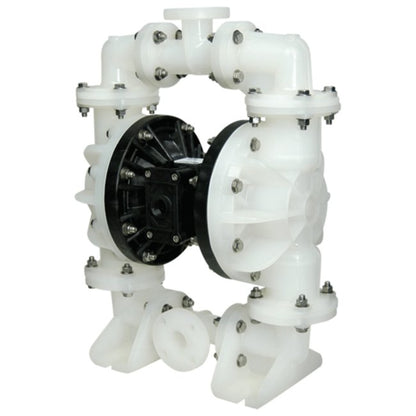

1 1/2" Top Discharge Cond. Poly Ball Valve Pump

Name: 1 1/2" Top Discharge Cond. Poly Ball Valve Pump
Brand: Springer Pumps, LLC
SKU: PRO-5116d3
Price: 1299.99 USD
Availability: OutOfStock

SKU:PRO-5116d3

Efficient 1 1/2" poly ball valve pump for water/wastewater solutions. Durable, corrosion-resistant design for institutional needs.

$1,299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 1 1/2" Top Discharge Cond. Poly Ball Valve Pump is a reliable and versatile solution for handling intermittent needs in water, wastewater, utility applications. Constructed with conductive polypropylene, this pump ensures efficient fluid transfer with a max flow rate of 100 gpm. With a durable ball check valve and polypropylene components, it offers resistance to abrasion and corrosion. Ideal for institutional users looking for a standard duty diaphragm pump that meets industry standards.

Product Specifications

Curves 0

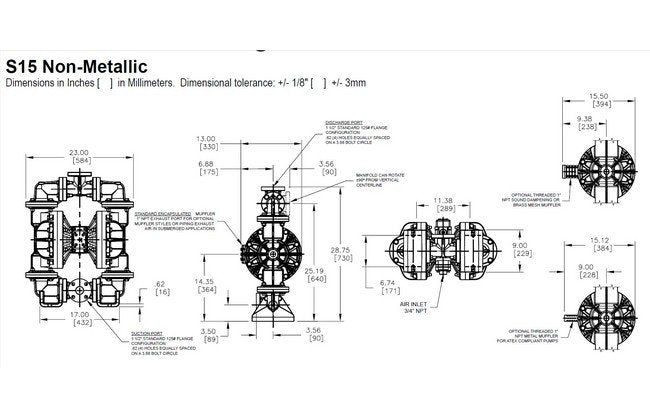

Dimensions 0

Dimensions

Specifications Check Valve Seat

Polypropylene

Specifications Check Valve Type

Ball

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Displacement Per Stroke

0.43 gal | 1.63 lit

Specifications Height

29 in | 730.25 mm

Specifications Inlet Size

1.5 Universal ANSI/DIN Flange in | 38 Universal ANSI/DIN Flange mm

Specifications Length

23 in | 0.5842 m | 584.20 mm

Specifications Max Flow Rate

100 gpm | 6000.00 gph | 378.54 lpm

Specifications Non Wetted Material

Conductive Polypropylene

Specifications Porting Position

Top Discharge

Specifications Sku

WRS15B3C2PCUS000SP

Specifications Solids Handling

0.47 in | 12 mm

Specifications Weight

85 lbs | 38.56 kg | 38.56 Kilogram

Specifications Wetted Moc

Conductive Polypropylene

Specifications Width

13 in | 0.3302 m | 330.20 mm

Category 6

Standard Duty Diaphragm Pumps

1 1/2" Top Discharge Cond. Poly Ball Valve Pump
