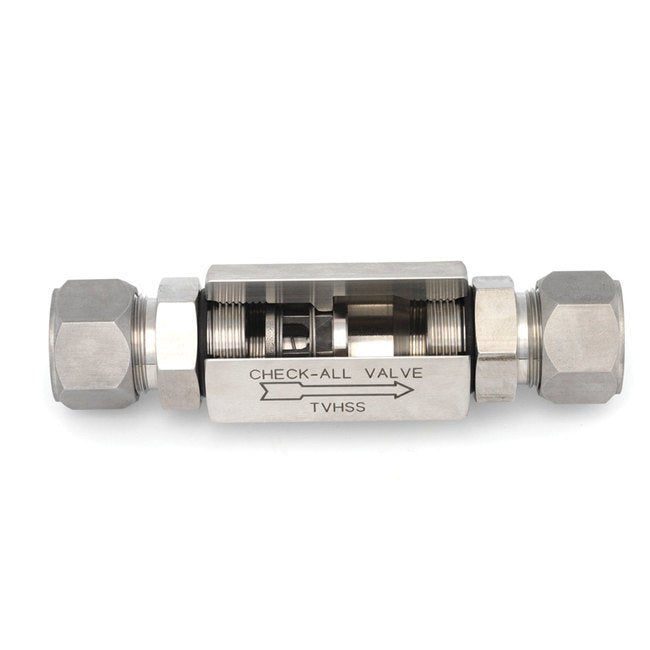

1-1/2" TV Style Tubing Check Valve - Stainless Steel

Name: 1-1/2" TV Style Tubing Check Valve - Stainless Steel
Brand: Check-All Valve Mfg. Co.
SKU: TVS-1abb1e
Price: 79.99 USD
Availability: OutOfStock

SKU:TVS-1abb1e

Premium 1-1/2" TV Style Tubing Check Valve - Stainless Steel with 0.125 psi Cracking Pressure. ISO 9001 & CE Certified.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 1-1/2 Inch TV Style Tubing Check Valve is a premium choice for applications requiring precise flow control. Constructed with high-quality 316 Stainless Steel, this valve boasts a standard cracking pressure of 0.125 psi, ensuring optimal performance. Equipped with compression tube fittings and complete with ferrules and nuts, this valve offers exceptional reliability and durability. With certifications including ISO 9001 and CE PED 2014/68/EU, this valve meets stringent quality standards. Suitable for low pressure relief, vacuum breaker, and various other industrial uses.

Product Specifications

Note

Consult the factory for instrumentation applications or for more information.Made in USA.

Specifications Body Material

316 Stainless Steel = SS | Brass = BR | Carbon Steel = CS

Specifications Certifications

European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified

Specifications Line Size

1-1/2 in

Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei

3000 psig

Specifications Note For Material

Listed above are the most common material selections. Please contact the factory for additional options.

Specifications Note For Standard Cracking Pressure

0.125 psi springs are not recommended for installations with flow vertical down.

Specifications Seat Material

Specifications Size Code

Specifications Special Options

O = Outer O-Ring Seals Same as Seat | T = FEP Encapsulated Spring

Specifications Spring Material

Specifications Standard Cracking Pressure

0.125 psi

Specifications Standard End Fitting O Ring Material

Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Polytetrafluoroethylene (PTFE) = TF

Specifications Valve Style

1-1/2" TV Style Tubing Check Valve - Stainless Steel
