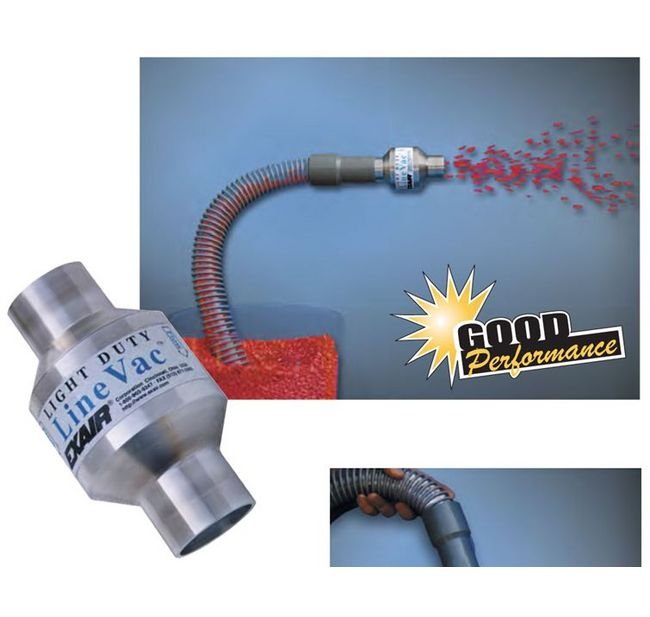

The 1-1/4 Inch Inlet Diameter Light Duty Line Vac Conveyor by EXAIR offers a reliable solution for conveying small material volumes efficiently. With a sturdy aluminum construction, this conveyor is designed for chip removal, fiber tensioning, filling operations, and more. Featuring a pressure rating of 80 psig and an air consumption of 14.70 SCFM, this conveyor is compact, quiet, and requires no moving parts, ensuring long-lasting performance for various industrial applications. Its moderate throughput capability and compatibility with standard hoses or tubes make it an ideal choice for institutional and government procurement needs.
Product Specifications
Specifications Advantages

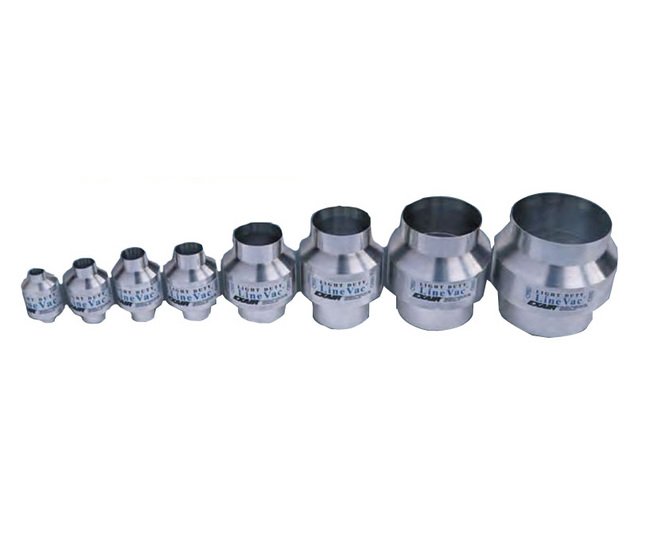

Aluminum | Compact | Eight Sizes | Fits Standard Hose or Tube | Moderate Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
14.70 SCFM | 501 SLPM
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Dimension E
2.41 in | 61 mm
Specifications Dimension F
1.06 in | 27 mm
Specifications Dimension G
1/4 NPT
Specifications Inlet Size
1-1/4 in | 32 mm
Specifications Inside Diameter
1 in | 25 mm
Specifications Outlet Diameter
1-1/4 in | 32 mm
Specifications Outside Diameter
2.38 in | 60 mm
Specifications Overall Length
4.53 in | 115 mm
Specifications Pressure
80 psig | 5.5 bar
