1 1/4" Bolt Type Dee Shackles Hot Dip Galvanized
1 1/4" Bolt Type Dee Shackles Hot Dip Galvanized
SKU:WIR-d89a1b
Premium 1 1/4" Bolt Type Dee Shackles for heavy lifting, hot dip galvanized, exceeds Federal Spec RR-C-271D standards.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

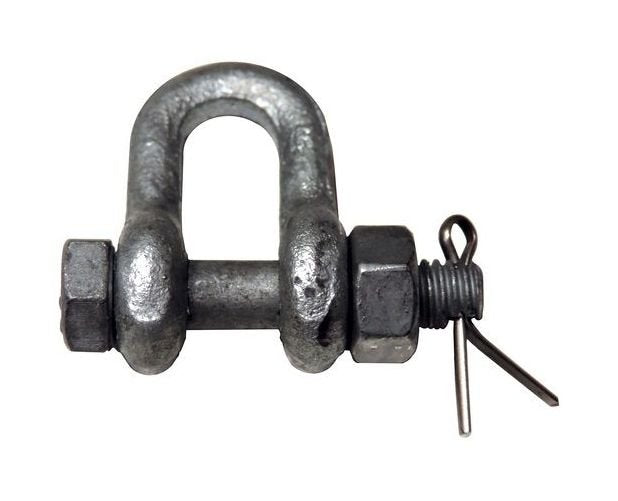

The 1 1/4" Bolt Type Dee Shackles are hot dip galvanized and drop forged to meet the highest standards of durability and strength. With a working load limit of 12 tons, these shackles are quenched and tempered with an alloy pin. Meeting Federal Specification RR-C-271D, Type IVA or Type IVB, Grade A, Class 3, these shackles exceed industry requirements for safety and reliability. Ideal for lifting or towing applications, these shackles are designed for heavy-duty use in various settings.

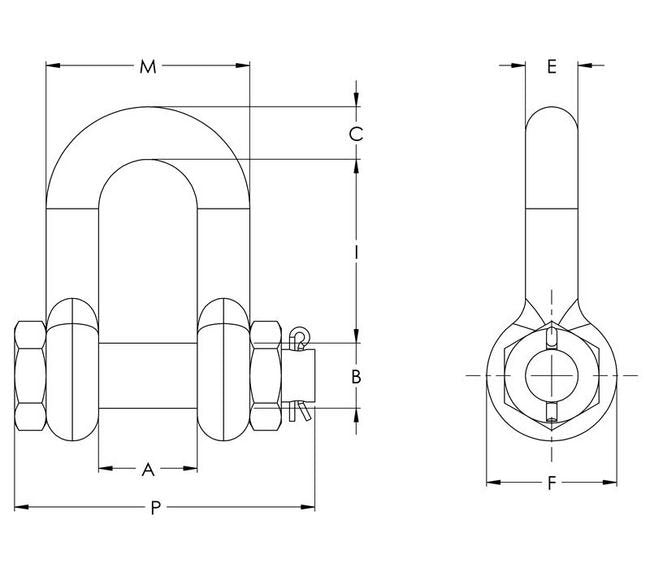

Product Specifications
Specifications A In
2.03
Specifications B In
1.38
Specifications C In
1.38
Specifications D In
4.69
Specifications E In
1.25
Specifications F In
3
Specifications I In
3.94
Specifications M In
4.53
Specifications Nominal Size In
1 1/4
Specifications P In
6.51
Specifications Weight Lbs
10.81
Specifications Wll Tons
12
CAGE
0T9L4
NAICS
332722
PSC
5306
