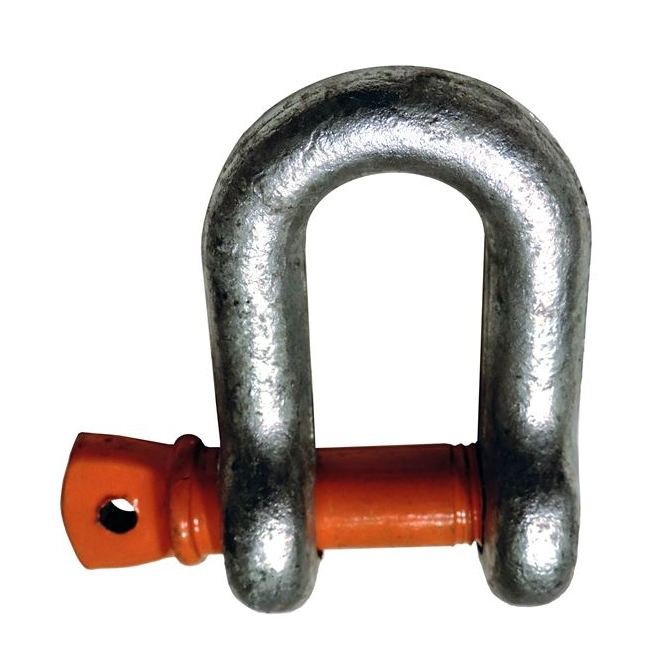

1 1/4" Chain Shackles Screw Pin Hot Dip Galvanized Drop Forged
1 1/4" Chain Shackles Screw Pin Hot Dip Galvanized Drop Forged
SKU:WIR-e17f36
Meet Federal Spec RR-C-271D standards with our 1 1/4" Chain Shackles. Ultimate load 6x WLL, quenched, tempered for safety.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
1 1/4" Chain Shackles Screw Pin Hot Dip Galvanized Drop Forged
$45.99
Quantity: 1
Claim Your Seller Account
1 1/4" Chain Shackles Screw Pin Hot Dip Galvanized Drop Forged
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1 1/4" Chain Shackles Screw Pin Hot Dip Galvanized Drop Forged is designed to meet stringent standards including Federal Specification RR-C-271D, Type IVB, Grade A, Class 2. With an impressive ultimate load that is 6 times the working load limit, this shackle is quenched, tempered, and features an alloy pin for maximum durability. Its proof load is 2.2 times the working load limit, ensuring safety and reliability in lifting or towing operations.

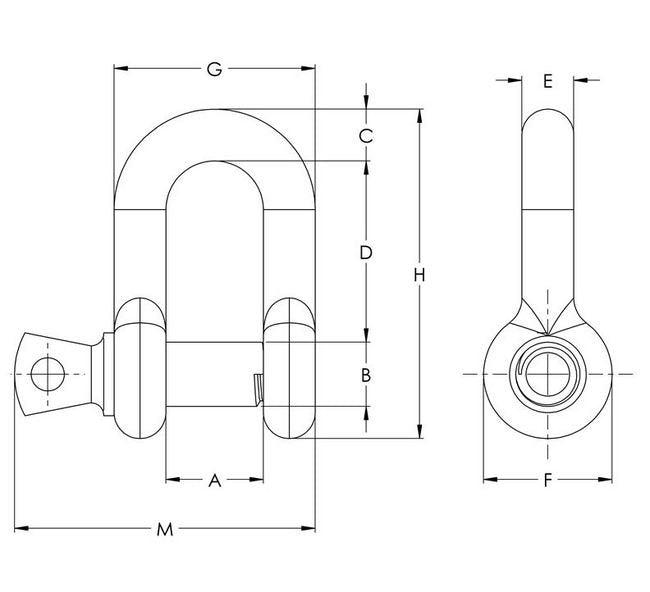

Product Specifications
Specifications A In
2.03
Specifications B In
1.38
Specifications C In
1.38
Specifications D In
3.94
Specifications E In
1.25
Specifications F In
3
Specifications G In
4.53
Specifications H In
7.5
Specifications M In
6.16
Specifications Nominal Size In
1 1/4
Specifications Weight Lbs
9.06
Specifications Wll Tons
12
CAGE
0T9L4
NAICS
332999
PSC
5340
