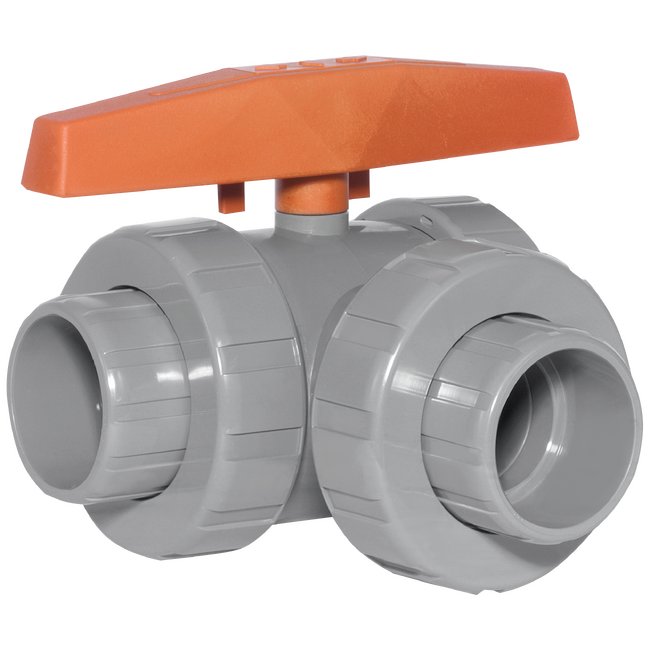

1-1/4" CPVC 3-Way Lateral True Union Ball Valve w/Flanged Connections - LA Series
1-1/4" CPVC 3-Way Lateral True Union Ball Valve w/Flanged Connections - LA Series
SKU:TRU-2cd701
Durable 1-1/4" CPVC 3-Way Lateral True Union Ball Valve with EPDM o-rings and flanged connections. Ideal for precise flow control.
Regular price
$54.99
Regular price
Sale price
$54.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1-1/4" CPVC 3-Way Lateral True Union Ball Valve with EPDM o-rings and flanged end connections is a versatile solution for diverting flow between ports without an OFF position. This valve, part of the LA Series, is designed for reliable performance with CPVC body material, ensuring durability and corrosion resistance. With precise measurements and quality seals, it meets industry standards for institutional and government procurement, providing efficient and leak-free operation.

Product Specifications
Specifications A
4.75 in | 120.65 mm
Specifications B
4.39 in | 111.51 mm
Specifications Body Material
CPVC
Specifications C
5.94 in | 150.88 mm
Specifications E
4.00 in | 101.60 mm
Specifications End Connection
Flanged
Specifications F
5.19 in | 131.83 mm
Specifications G
11.54 in | 293.12 mm
Specifications H
4.19 in | 106.43 mm
Specifications Seals
EPDM
Specifications Size
1-1/4"
