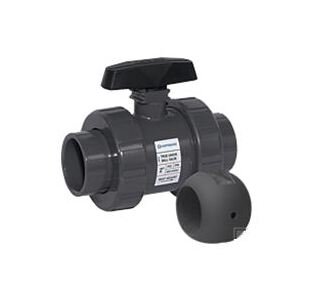

1-1/4 CPVC True Union Ball Valve with Flanged End Connections
1-1/4 CPVC True Union Ball Valve with Flanged End Connections
SKU:TRU-cf4362
High-performance 1-1/4 CPVC True Union Ball Valve with FPM o-rings, ideal for sodium hypochlorite applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
1-1/4 CPVC True Union Ball Valve with Flanged End Connections
$49.99
Quantity: 1
Claim Your Seller Account
1-1/4 CPVC True Union Ball Valve with Flanged End Connections
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The TBZ Series 'Z-Ball' Valve features a 1-1/4" CPVC body with FPM o-rings, designed for bi-directional flow control. This valve includes a drilled ball for venting and is suitable for sodium hypochlorite applications. With a Cv Coefficient of 75.0, it is rated @ 250PSI for sizes 1/4" - 2", 235PSI for 2-1/2" to 4", and 150PSI for 6" flanged. The black handle provides easy visual identification. End connections are flanged, ensuring secure installation and efficient operation.
Product Specifications
Dimensional Attributes A
6.29 in
Dimensional Attributes B
1.25 in
Dimensional Attributes C
4.00 in
Dimensional Attributes D1
3.92 in
Dimensional Attributes D2
3.48 in
Dimensional Attributes F
9.15 in
Dimensional Attributes H
3.88 in
Specifications Body Material
CPVC
Specifications Cv Coefficient
75.0
Specifications End Connection
Flanged
Specifications Flow Configuration
Bi-directional
Specifications Seals
FPM
Specifications Series
TBZ
Specifications Size
1-1/4"
Specifications Weight
0.00 lb
