1-1/4" EASTAR® Simplex Basket Strainer with EPDM Seal
1-1/4" EASTAR® Simplex Basket Strainer with EPDM Seal
SKU:CAS-04159a
Efficiently filter dirt & debris with the 1-1/4" EASTAR® Simplex Basket Strainer w/EPDM Seal. Ideal for consumer & institutional use.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
1-1/4" EASTAR® Simplex Basket Strainer with EPDM Seal
$199.99
Quantity: 1
Claim Your Seller Account
1-1/4" EASTAR® Simplex Basket Strainer with EPDM Seal
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1-1/4" EASTAR® Simplex Basket Strainer with EPDM Seal offers unparalleled protection for your pipeline system components, effectively filtering out dirt and debris. With flanged end connections for easy installation, this Hayward Thermoplastic Strainer ensures efficient removal of unwanted particles while allowing unrestricted flow of process media. Made from EASTAR® material and featuring a precision-engineered EPDM seal, this sturdy strainer guarantees durability and reliability. The 1/8" standard basket perforation ensures superior filtration. Compliant with industry standards, this strainer is ideal for applications requiring reliable filtration in both consumer and institutional settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accuglide Ii Taping Head 0
3M's advanced, low impact AccuGlide⢠II Taping Head with its curvilinear track insures that even lightweight corrugated cartons are securely and carefully sealed. Provides positive tape starting and precise tape application. The tape head floats smoothly and easily to adjust for overpacked boxes. Applies Standard 2.75 inch [70mm] tape leg lengths. Can be converted to apply 2.00 inch [51mm] leg lengths. And a built-in blade oiler helps prevent adhesive buildup. The head comes with a three year guarantee.
Box Capacities Max Box Height
20 in | 510 mm
Box Capacities Max Box Length
25 in | 635 mm
Box Capacities Max Box Width
20 in | 510 mm
Box Capacities Min Box Height
4.75 in | 120 mm
Box Capacities Min Box Length
6 in | 150 mm
Box Capacities Min Box Width
4.75 in | 120 mm

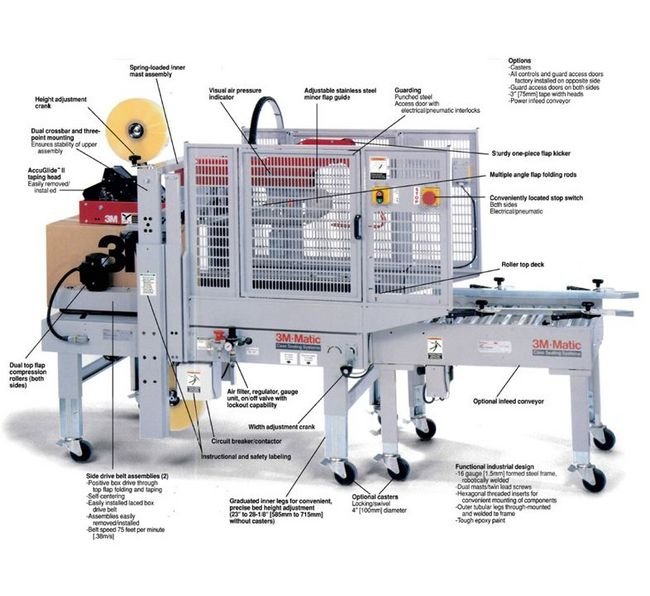

Functional Industrial Design 0
16 gauge (1.5mm) formed steel frame robotically welded.Dual masts/twin lead screwsHexagonal threaded inserts for convenient mounting of components.Outer tubular legs through-mounted and welded to frame.Tough epoxy paint
Limitation Of Liability 0
3M and seller shall not be liable for direct, indirect, special incidental or consequential damages based upon breach of warranty, breach of contract negligence strict liability or any other legal theory.The foregoing Equipment Warranty and Limited Remedy and limitation of Liability may be charged only by a written agreement signed by authorized officers of 3M and seller.
Machine Specifications Conveyor Bed Height
Adjustable from a height of 23 in
Machine Specifications Crated Weight
631 lbs | 287 kg
Machine Specifications Machine Length
75.5 in | 1920 mm
Machine Specifications Machine Width
35.38 in | 900 mm

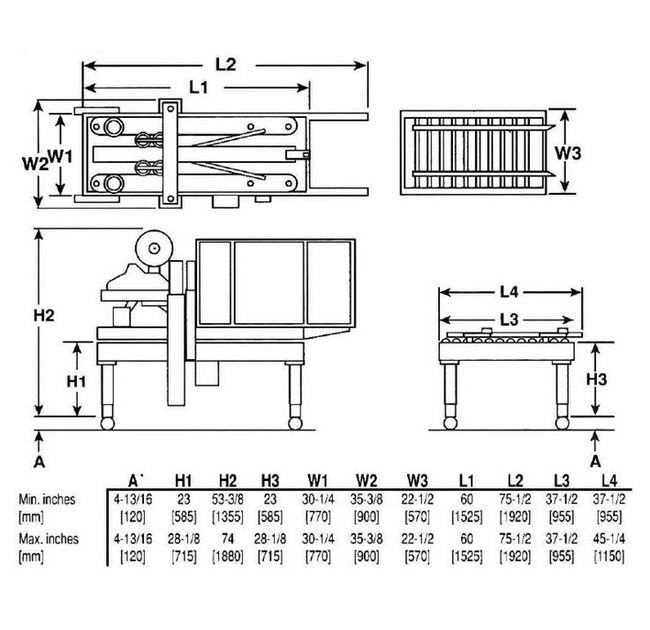

Machine Specifications Max Machine Dim A
4 13/16 in | 120 mm
Machine Specifications Max Machine Dim H1
28 1/8 in | 715 mm
Machine Specifications Max Machine Dim H2
74 in | 1880 mm
Machine Specifications Max Machine Dim H3
28 1/8 in | 715 mm
Machine Specifications Max Machine Dim L1
60 in | 1525 mm
Machine Specifications Max Machine Dim L2
75 1/2 in | 1920 mm
Machine Specifications Max Machine Dim L3
37 1/2 in | 955 mm
Machine Specifications Max Machine Dim L4
45 1/4 in | 1150 mm
Machine Specifications Max Machine Dim W1
30 1/4 in | 770 mm
Machine Specifications Max Machine Dim W2
35 3/8 in | 900 mm
Machine Specifications Max Machine Dim W3
22 1/2 in | 570 mm
Machine Specifications Max Machine Height
74 in | 1880 mm
Machine Specifications Min Machine Dim A
4 13/16 in | 120 mm
Machine Specifications Min Machine Dim H1
23 in | 585 mm
Machine Specifications Min Machine Dim H2
53 3/8 in | 1355 mm
Machine Specifications Min Machine Dim H3
23 in | 585 mm
Machine Specifications Min Machine Dim L1
60 in | 1525 mm
Machine Specifications Min Machine Height
53.38 in | 1355 mm
Power Requirements Current
2.8 A
Power Requirements Frequency
60 Hz
Power Requirements Pneumatic Flow
1.5 SCFM (2.5 m³/h 21ºC, 101 kPa] maximum at maximum cycle rate.
Power Requirements Pneumatic Pressure
75 psig | 517 kPa
Power Requirements Power
320 W
Power Requirements Voltage
115 V
Specifications Max Tape Width
2 in | 48 mm
Specifications Min Tape Width
1 1/2 in | 36 mm
Specifications Tape Roll Diameter
Up to 16 in [406 mm] maximum on a 3 in [75 mm] diameter core. (Accommodates Scotch brand film types -1,000-yard rolls.)
