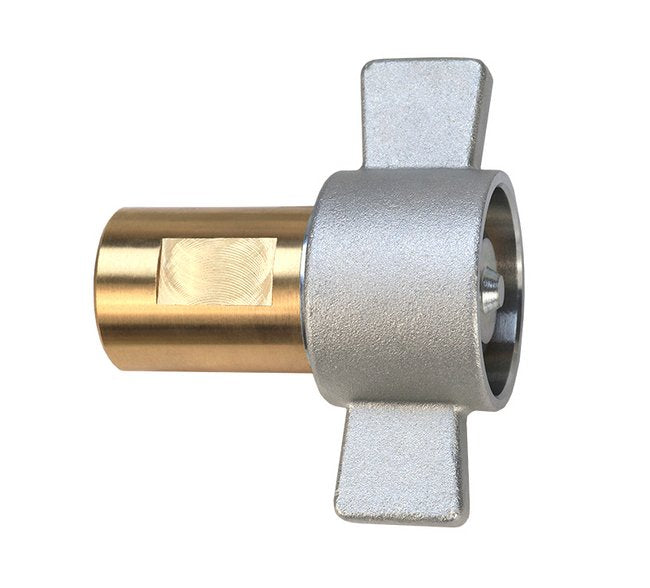

1 1/4 in Carbon Steel Wing Nut Hydraulic Socket

Name: 1 1/4 in Carbon Steel Wing Nut Hydraulic Socket
Brand: Seal Fast, Inc.
SKU: COU-53d9e4
Price: 49.99 USD
Availability: OutOfStock

SKU:COU-53d9e4

High-quality 1 1/4 in Carbon Steel Wing Nut Hydraulic Socket for reliable hydraulic connections under pressure.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 1 1/4 inch Carbon Steel Wing Nut Hydraulic Socket is a versatile and durable solution for hydraulic applications. Featuring a brass and carbon steel construction with Buna-N seal material and zinc plating, this socket ensures reliable performance under pressure. With a working pressure of 2900 psi and a wide working temperature range from -4 to +176 ºF, it is ideal for various applications such as oil well equipment, sand spreaders, and dump trailers. This coupling meets industry standards for quality and safety.

Product Specifications

Applications

Seal Fast Wing Nut Quick Connects/Disconnects are low spill couplings designed to allow connection under pressure. They are recommended for oil well equipment, sand and salt spreaders, live bottom trailers, dump trailers, etc.

Specifications Body Size

1 1/4 in

Specifications Connection Type

Female | Socket

Specifications Coupling Type

Wing

Specifications End Size

1 1/4 in. Female NPT

Specifications Interchangeable With

Parker 6100Snap-Tite 78Aeroquip 5100Dixon W

Specifications Material

Brass | Carbon Steel

Specifications Overall Length

4.16 in

Specifications Seal Material

Buna-N (Nitrile)

Specifications Style

Hydraulic Sockets

Specifications Surface Treatment

Zinc Plating

Specifications Wing Nut Size

5.20 in

Specifications Working Pressure

2900 psi

Specifications Working Temperature Range

-4 to +176 ºF

Specifications Wrench Flat Size

1.78 in
