1-1/4 in Nickel Plated Brass Compact Fittings ISO, Straight Connector

Name: 1-1/4 in Nickel Plated Brass Compact Fittings ISO, Straight Connector
Brand: Anamet Electrical, Inc.
SKU: FIT-18b1b4
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-18b1b4

Durable and corrosion-resistant 1-1/4 in Nickel Plated Brass Fittings ISO, ideal for secure electrical connections.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

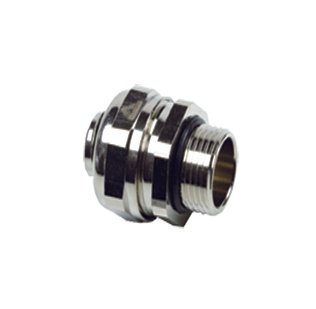

The 1-1/4 inch Nickel Plated Brass Compact Fittings ISO features a durable four-piece construction comprising a gland nut, sealing ring, grounding cone, and body. With superior corrosion resistance and strength, this fitting ensures reliability in various applications. It is UL Listed, CSA Certified, and RoHS WEEE Compliant, meeting stringent quality standards for safety and performance.

Product Specifications

Specifications Connector Type

Straight

Specifications Core Material

Brass

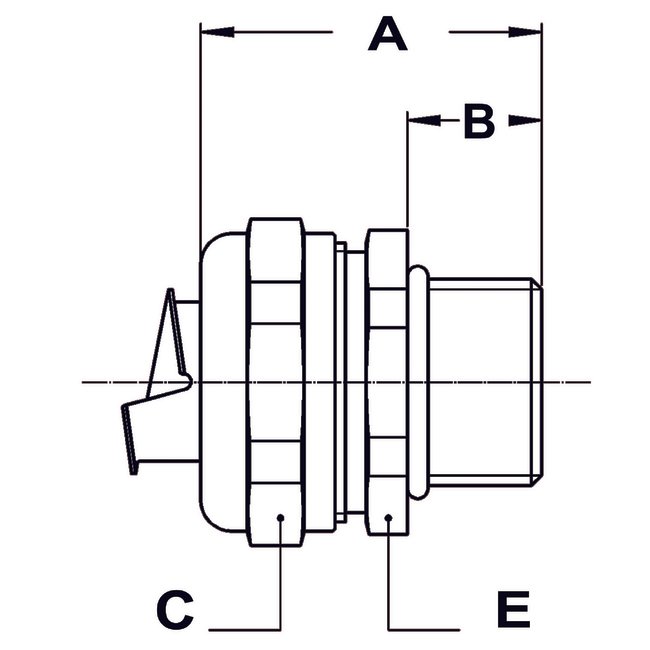

Specifications Dimension A

1.574 in

Specifications Dimension B

0.511 in

Specifications Dimension C

2.086 in

Specifications Dimension E

1.968 in

Specifications Electrical Trade Size

1-1/4 in

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Jacket Benefits

Liquid Tight

Specifications Thread Type

M40 X 1.5

Specifications Type

Compact Nickel Plated Brass
