1-1/4 Inch 316-NM Stainless Steel Shackle Bolt

Name: 1-1/4 Inch 316-NM Stainless Steel Shackle Bolt
Brand: Lexco Cable Manufacturing
SKU: WIR-acc52f
Price: 38.99 USD
Availability: OutOfStock

SKU:WIR-acc52f

Premium 1-1/4" 316-NM Stainless Steel Shackle Bolt for heavy-duty lifting & towing. Load rated at 14,000 lbs. Drop forged, includes cotter pin & nut.

$38.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

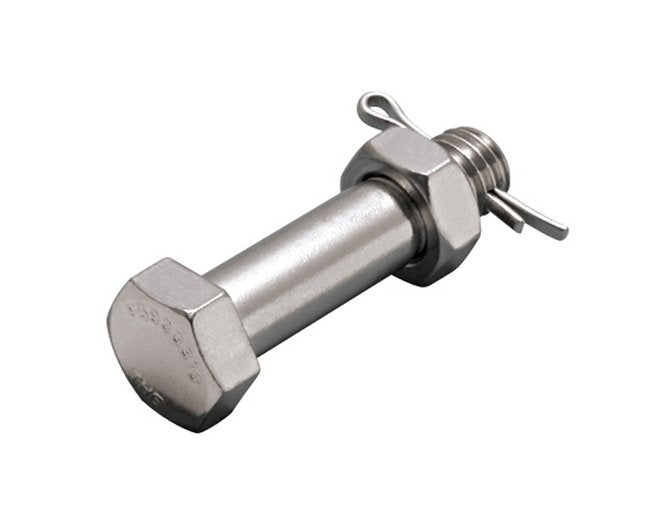

The 1-1/4 Inch 316-NM Stainless Steel Shackle Bolt is a premium wire rope accessory designed for heavy-duty lifting and towing applications. Crafted from high-grade 316-NM stainless steel, this bolt offers exceptional strength and corrosion resistance, making it ideal for marine, industrial, and construction use. Featuring a load rating of 14,000 lbs and precise drop-forged construction, this replacement bolt ensures reliable performance. Compatible with chain and anchor shackle bodies (P0115-BD & P0116-BD), it comes complete with a cotter pin and nut for convenient assembly. Upgrade your rigging setup with this import-quality shackle bolt today.

Product Specifications

Note 0

Replacement bolt. Compatible with chain (P0115-BD) & anchor (P0116-BD) shackle bodies. Cotter pin and nut included.

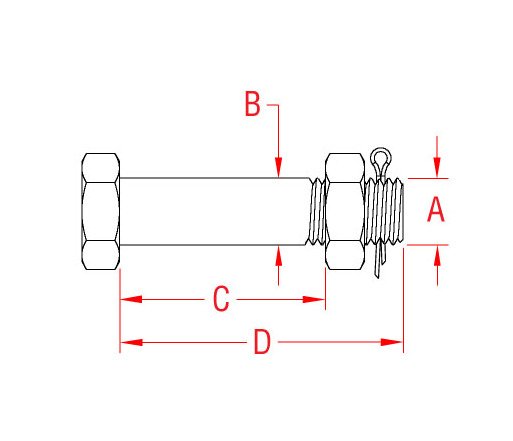

Specifications C

3.65 "

Specifications D

6.40 "

Specifications Dimension A

1-3/8 in.-6

Specifications Dimension B

1.38 "

Specifications Key Features

Drop Forged | Import | Load Rated

Specifications Material

316-NM Stainless Steel

Specifications Size

1-1/4 "

Specifications Weight

4.12 lb

Specifications Wll

14,000 lb

CAGE

0T9L4

NAICS

332722

PSC

5306

1-1/4 Inch 316-NM Stainless Steel Shackle Bolt
