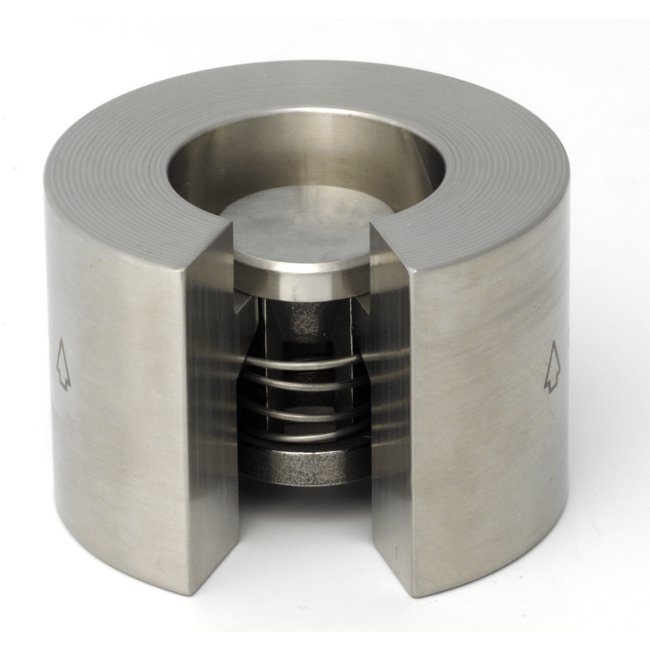

1-1/4 Inch WV Style Wafer Insert Check Valve
1-1/4 Inch WV Style Wafer Insert Check Valve
SKU:WVS-9fe97f
High-quality 1-1/4 Inch WV Style Wafer Insert Check Valve for reliable sealing in rigid piping systems. Fits between ANSI flanges with precision.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
1-1/4 Inch WV Style Wafer Insert Check Valve
$249.99
Quantity: 1
Claim Your Seller Account
1-1/4 Inch WV Style Wafer Insert Check Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1-1/4 Inch WV Style Wafer Insert Check Valve is a precision-engineered valve designed to fit seamlessly between ANSI flanges, offering quick installation and removal in rigid piping systems. With its drop-in valve body and requirement of two gaskets, this valve ensures secure sealing and efficient operation. Crafted from high-quality 316 Stainless Steel, this valve boasts excellent durability and corrosion resistance. Its standard cracking pressure of 0.125 psi, along with a variety of seat material options, makes it versatile for various applications, including low-pressure relief and vacuum breaker functionalities. Certified to meet European Conformity (CE) PED and ISO 9001 standards, this valve guarantees top-notch performance and reliability in institutional settings.
Product Specifications
Note
Made in USA.
Specifications Body Material
316 Stainless Steel = SS | 316L Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Brass = BR | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Titanium = TI
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
1-1/4 in
Specifications Non Shock Pressure Rating
American National Standards Institute (ANSI) Class 150 - 1500
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
1500 psig
Specifications Non Shock Pressure Rating For Brass Valves
American National Standards Institute (ANSI) Class 150 - 300
Specifications Note For Standard Cracking Pressure
0.125 psi springs are not recommended for installations with flow vertical down.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
I
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
0.125 psi
Specifications Valve Style
WV
