1-1/4 PVC True Union Ball Valve with FPM O-rings
1-1/4 PVC True Union Ball Valve with FPM O-rings
SKU:TRU-7698f7
Get superior performance with the 1-1/4 PVC True Union Ball Valve featuring FPM O-rings and bi-directional flow design. NSF/ANSI 61-G listed.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
1-1/4 PVC True Union Ball Valve with FPM O-rings
$29.99
Quantity: 1
Claim Your Seller Account
1-1/4 PVC True Union Ball Valve with FPM O-rings
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

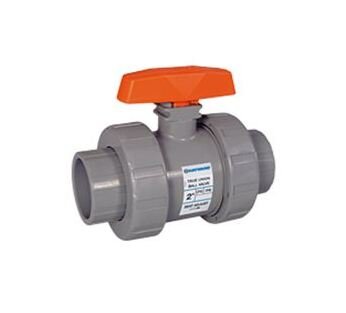

The 1-1/4 PVC True Union Ball Valve from the TB Series features durable PVC construction with FPM O-rings for reliable performance. With socket/threaded end connections, this valve is designed for bi-directional flow and rated at 250psi, meeting NSF/ANSI 61-G standards. Its Cv coefficient of 75.0 ensures efficient operation, while the reversible PTFE seats enhance versatility. Perfect for a wide range of applications, this valve combines quality materials and precision engineering to deliver exceptional results.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensional Attributes A
6.29 in | 159.77 mm
Dimensional Attributes B
1.25 in | 31.75 mm
Dimensional Attributes C
4.00 in | 101.60 mm
Dimensional Attributes D1
3.92 in | 99.57 mm
Dimensional Attributes D2
3.48 in | 88.39 mm
Dimensional Attributes H
3.88 in | 98.55 mm
Specifications Body Material
PVC
Specifications Cv Coefficient
75.0
Specifications End Connection
Socket/Threaded
Specifications Flow Configuration
Bi-directional
Specifications Seals
FPM
Specifications Series
TB
Specifications Size
1-1/4"
Specifications Weight
2.66 lb | 1.21 kg
