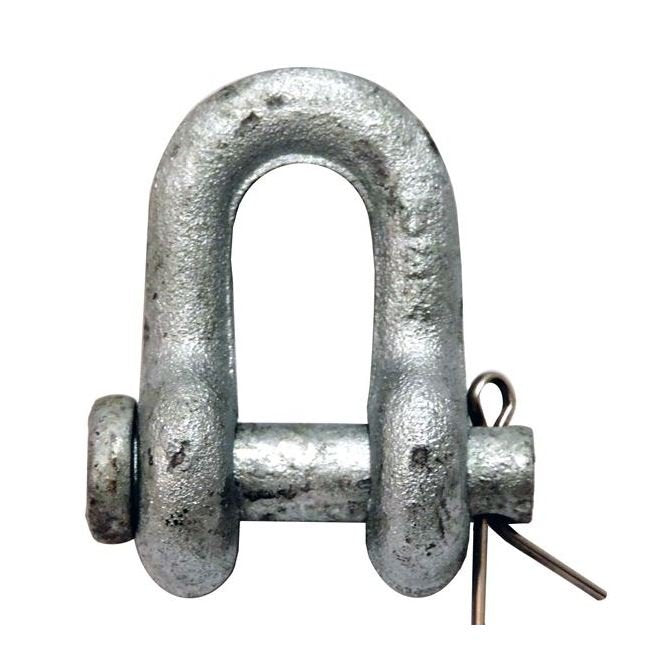

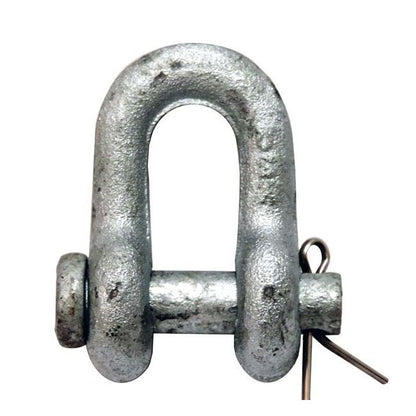

• 1 1/8" Chain Shackles Round Pin Hot Dip Galvanized Drop Forged - Image 1
  • 1 1/8" Chain Shackles Round Pin Hot Dip Galvanized Drop Forged - Image 2
1 2
Lexco Cable Manufacturing →

1 1/8" Chain Shackles Round Pin Hot Dip Galvanized Drop Forged

1 1/8" Chain Shackles Round Pin Hot Dip Galvanized Drop Forged

WIR-50d284

Heavy-duty 1 1/8" Chain Shackles Round Pin for lifting and towing applications, meeting Federal Specification RR-C-271D standards.

$39.99
$39.99
Sale

Initiate Order

1 1/8" Chain Shackles Round Pin Hot Dip Galvanized Drop Forged

1 1/8" Chain Shackles Round Pin Hot Dip Galvanized Drop Forged

$39.99

Quantity: 1

Claim Your Seller Account

1 1/8" Chain Shackles Round Pin Hot Dip Galvanized Drop Forged

1 1/8" Chain Shackles Round Pin Hot Dip Galvanized Drop Forged

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 1 1/8" Chain Shackles Round Pin are designed to meet the stringent Federal Specification RR-C-271D, Type IVB, Grade A, Class 1 standards. These shackles have an ultimate load capacity of 6 times the working load limit for superior strength and safety. Quenched and tempered with an alloy pin, they offer reliable performance under heavy loads. With a proof load of 2.2 times the working load limit, these shackles ensure durability and resilience. Ideal for wire rope loops in lifting or towing applications.

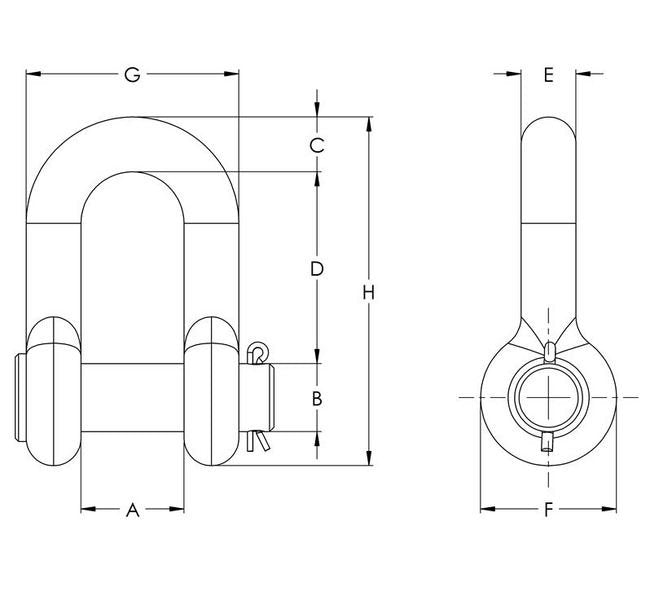

Product Specifications

Specifications A In
1.81
Specifications B In
1.25
Specifications C In
1.25
Specifications D In
3.58
Specifications E In
1.13
Specifications F In
2.69
Specifications G In
4.06
Specifications H In
6.78
Specifications M In
5.59
Specifications Nominal Size In
1 1/8
Specifications Weight Lbs
6.3
Specifications Wll Tons
9 1/2
CAGE
0T9L4
NAICS
332999
PSC
5340
