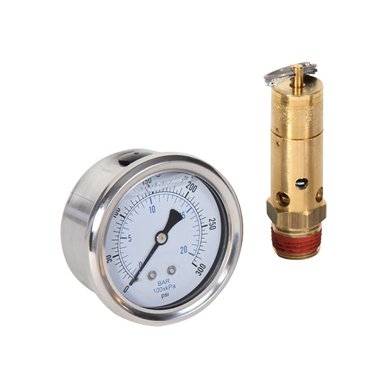

1/2" 200 PSI Safety Relief Valve Kit with Liquid Filled Gauge
1/2" 200 PSI Safety Relief Valve Kit with Liquid Filled Gauge
SKU:REC-845d74
Enhance pressure management with our 1/2" Safety Relief Valve Kit & Liquid Filled Gauge - Ensures precision in hydraulic & pneumatic systems.
Regular price
$58.90
Regular price
Sale price
$58.90
Unit price
per
Initiate Order
1/2" 200 PSI Safety Relief Valve Kit with Liquid Filled Gauge
$58.90
Quantity: 1
Claim Your Seller Account
1/2" 200 PSI Safety Relief Valve Kit with Liquid Filled Gauge
$58.90
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1/2" 200 PSI Safety Relief Valve Kit is designed for reliable pressure management in hydraulic, pneumatic, and industrial systems. The safety valve ensures precision with a set pressure tolerance of ±3%. Constructed with all brass and a zinc-plated music wire spring, it meets UV and NB standards. The liquid-filled gauge with a stainless steel case and copper alloy wetted parts enhances durability and accuracy. Ideal for commercial and industrial applications, this kit offers bubble-tight performance and long-lasting gauge functionality.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Connection Size
1/2 in
Specifications Dial Size
2.5
Specifications General Description
Safety Valve Information: ⢠Set Pressure Tolerances: ± 3% of Set Pressure ⢠Maximum Temperature: 250 F ⢠Construction: All Brass With Zinc Plated Music Wire Spring ⢠Resilient Silicone Rubber Pad Ensures Valve is Bubble Tight to Within 10% of Set Pressure ⢠Stamped With the UV and NB Symbols ⢠Loc-Tite Vibra Seal Standard The Liquid Filled Gauge Dampens the Effect of Pulsation and Vibration, While Also Perpetually Lubricating the Movement and Keeping Contaminates Such As Dirt Away From All Moving Parts Which Will Extend the Life of the Gauge. Typically Used on Hydraulic & Pneumatic Systems as Well as Any Commercial or Industrial Applications Not Corrosive to Brass and Bronze Wetted Parts Where Silicone Filling is Suitable For Use. ⢠Built In Snubber ⢠Stainless Steel Case and Bezel ⢠Copper Alloy Wetted Parts ⢠Polycarbonate Lens ⢠Liquid Filled ⢠Accuracy : 2-1-2% of Span ASME B40.1 Grade A ⢠Dual Scale: PSI/Bar (x 100=kPa) Standard ⢠Ambient Temperature: Filled: 30 F to 160 F ⢠Design Meets or Exceeds ASME B40.100 Pressure Gauge Standar
Specifications Maximum Rated Flow
358 scfm
Specifications Maximum Rated Pressure
200 psi
Specifications Web Price
58.90 USD
