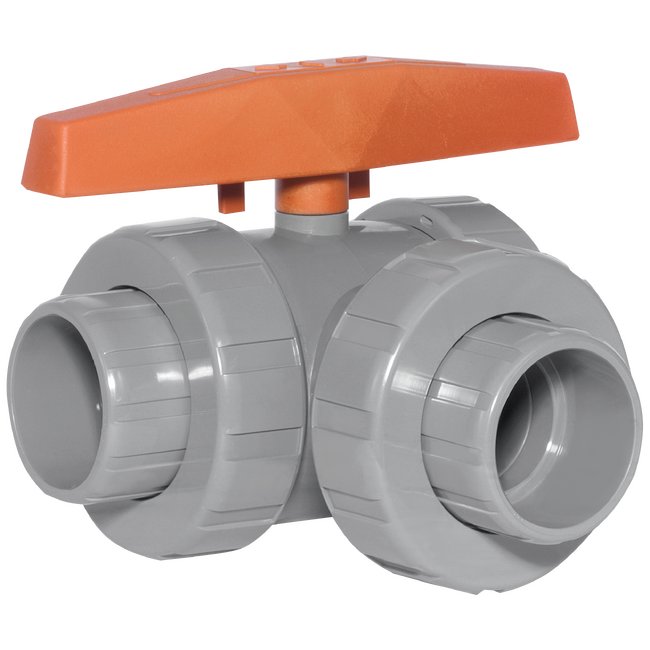

1/2" CPVC 3-Way Lateral True Union Ball Valves with EPDM Seals
1/2" CPVC 3-Way Lateral True Union Ball Valves with EPDM Seals
SKU:TRU-5343b5
Durable 1/2" CPVC 3-Way Lateral Ball Valves with EPDM seals for precise flow control in industrial settings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
1/2" CPVC 3-Way Lateral True Union Ball Valves with EPDM Seals
$29.99
Quantity: 1
Claim Your Seller Account
1/2" CPVC 3-Way Lateral True Union Ball Valves with EPDM Seals
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1/2" CPVC 3-Way Lateral True Union Ball Valves from our LA Series boast a versatile design that diverts flow from the center port to the left or right ports seamlessly, rated @ 150PSI. Featuring EPDM o-rings for reliable sealing, these valves come with socket/threaded end connections for sizes up to 2 inches. With a Cv Factor of 3, these valves offer optimal performance and durability for a range of industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A
2.25 in | 57.15 mm
Specifications B
2.30 in | 58.42 mm
Specifications Body Material
CPVC
Specifications C
3.29 in | 83.57 mm
Specifications Cv Factor
3
Specifications E
3.50 in | 88.90 mm
Specifications End Connection
Socket/Threaded
Specifications F
3.87 in | 98.30 mm
Specifications G
6.72 in | 170.69 mm
Specifications H
1.70 in | 43.18 mm
Specifications Seals
EPDM
Specifications Size
1/2"
