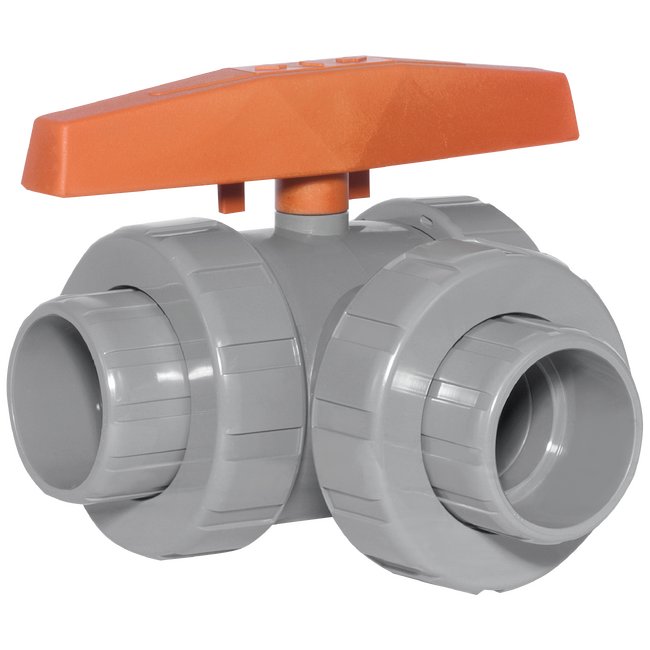

1/2" CPVC 3-Way Lateral True Union Ball Valves with FPM O-Rings
1/2" CPVC 3-Way Lateral True Union Ball Valves with FPM O-Rings
SKU:TRU-a2e3bb
Enhance fluid control with 1/2" CPVC 3-Way True Union Valves - LA Series. Divert flow without an OFF position, rated @ 150PSI, with socket/threaded connections.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid control system with our 1/2" CPVC 3-Way Lateral True Union Ball Valves from the LA Series. These valves feature a unique design that allows flow diversion from the center port to the left or right ports without an OFF position. Crafted from durable CPVC with FPM O-rings, they are rated @ 150PSI, ensuring reliable performance. With socket and threaded end connections available for sizes up to 2", these valves offer versatility and ease of installation. Enhance efficiency and precision in your industrial operations with these high-quality valves.

Product Specifications
Specifications A
2.25 in | 57.15 mm
Specifications B
2.30 in | 58.42 mm
Specifications Body Material
CPVC
Specifications C
3.29 in | 83.57 mm
Specifications Cv Factor
3
Specifications E
3.50 in | 88.90 mm
Specifications End Connection
Socket/Threaded
Specifications F
3.87 in | 98.30 mm
Specifications G
6.72 in | 170.69 mm
Specifications H
1.70 in | 43.18 mm
Specifications Seals
FPM
Specifications Size
1/2"
