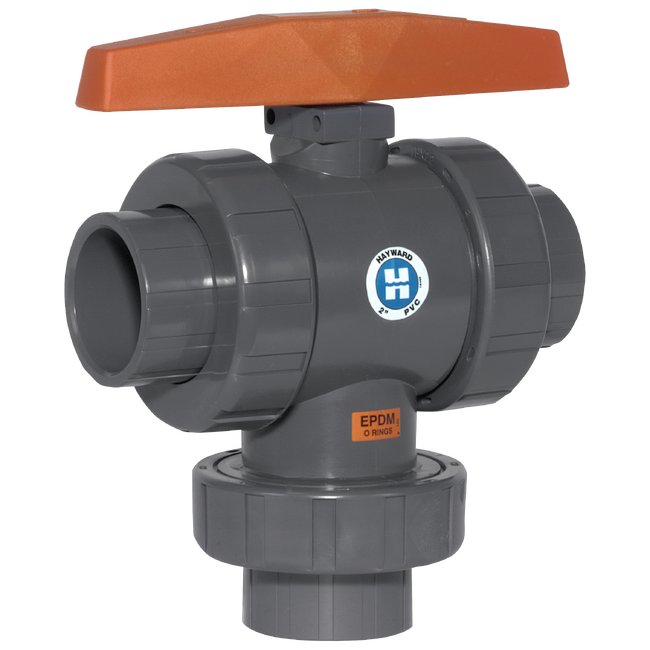

1/2" CPVC 3-Way True Union Ball Valve with FPM O-Rings

Name: 1/2" CPVC 3-Way True Union Ball Valve with FPM O-Rings
Brand: Hayward Flow Control
SKU: TRU-592f64
Price: 29.99 USD
Availability: OutOfStock

SKU:TRU-592f64

Durable 1/2" CPVC 3-Way True Union Ball Valve with FPM O-Rings for precise flow control. Ideal for various applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 1/2" CPVC 3-Way True Union Ball Valve from the TW Series is a versatile solution for different flow configurations. Constructed with CPVC body material and FPM o-rings, this valve ensures durability and resistance to a wide range of chemicals. Featuring socket/threaded end connections, it offers easy installation and secure connections. With a Cv Factor of 3, this valve is rated @ 150PSI and meets the high standards required for industrial applications. Its precise dimensions ensure a perfect fit for your systems, making it an ideal choice for both consumer and institutional buyers.

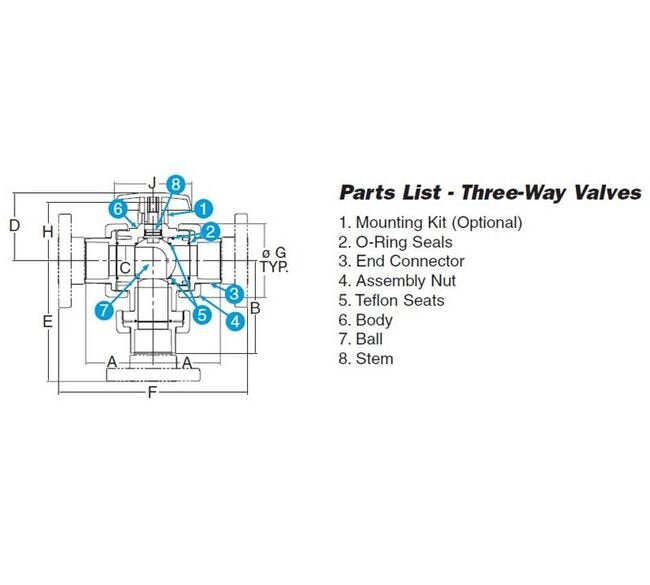

Product Specifications

Specifications A

2.37 in | 60.07 mm

Specifications B

3.29 in | 83.57 mm

Specifications Body Material

CPVC

Specifications C

0.50 in | 12.70 mm

Specifications Cv Factor

Specifications D

2.94 in | 74.68 mm

Specifications E

3.87 in | 98.30 mm

Specifications End Connection

Socket/Threaded

Specifications F

6.72 in | 170.69 mm

Specifications G

2.25 in | 57.15 mm

Specifications H

2.53 in | 64.26 mm

Specifications J

3.50 in | 88.90 mm

Specifications Seals

FPM

Specifications Size

1/2"

1/2" CPVC 3-Way True Union Ball Valve with FPM O-Rings
