1/2" CR Style Check Valve Connector - 0.500 psi Cracking Pressure
1/2" CR Style Check Valve Connector - 0.500 psi Cracking Pressure
SKU:CNA-38ca89
Enhance fluid control with Check-All® CN/CR Check Valve Connector - ISO 7 R Threads, 0.500 psi Cracking Pressure. Reliable, quality valve solution.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
1/2" CR Style Check Valve Connector - 0.500 psi Cracking Pressure
$69.99
Quantity: 1
Claim Your Seller Account
1/2" CR Style Check Valve Connector - 0.500 psi Cracking Pressure
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

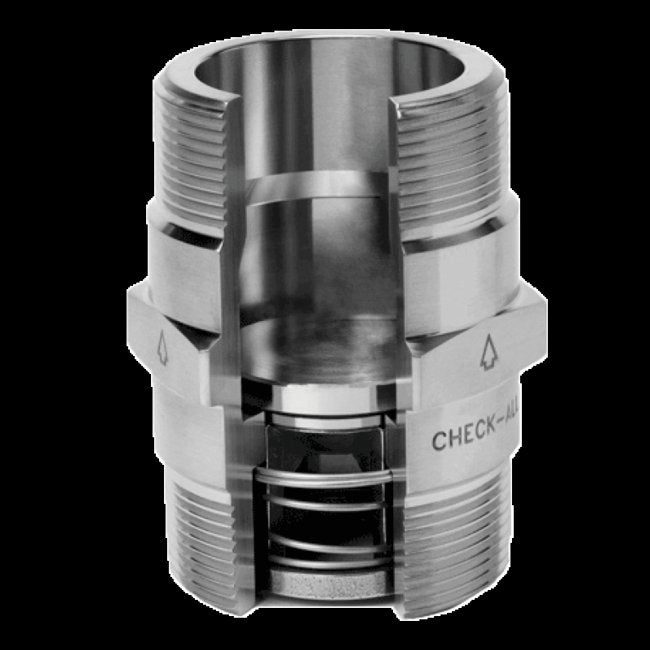

Experience superior fluid control with the Check-All® CN and CR Style Connector Check Valve. This valve, with ISO 7 R Threads, is ideal for low pressure relief, vacuum breaker applications, and pressure vacuum vent setups. Crafted from premium materials like 316 Stainless Steel and available in various body material options, including Alloy 20 and Brass. With a standard cracking pressure of 0.500 psi, this versatile valve ensures reliable operation and non-shock pressure ratings up to 3000 psig. Compliant with ISO 9001 and CE standards, guaranteeing quality and performance. Made in the USA.
Product Specifications
Note
Made in USA.
Specifications Body Material
316 Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Brass = BR | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Titanium = TI
Specifications Body Material Availability
316 Stainless Steel (SS) - Standard | Alloy 20 (A2) - Semi-Standard | Alloy B (HB) - Contact the factory for these or other materials | Alloy C-276 (HC) - Semi-Standard | Brass (BR) - Standard | Carbon Steel (CS) - Standard | Monel® 400 or Alloy R405 - Semi-Standard | Titanium (TI) - Contact the factory for these or other materials
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
1/2 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
3000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Note For Standard Cracking Pressure
0.500 psi is the only standard cracking pressure for spring materials other than Stainless Steel.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
D
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy B = HB | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
0.500 psi
Specifications Valve Style
International Organization for Standardization (ISO) 7 R Threads = CR
