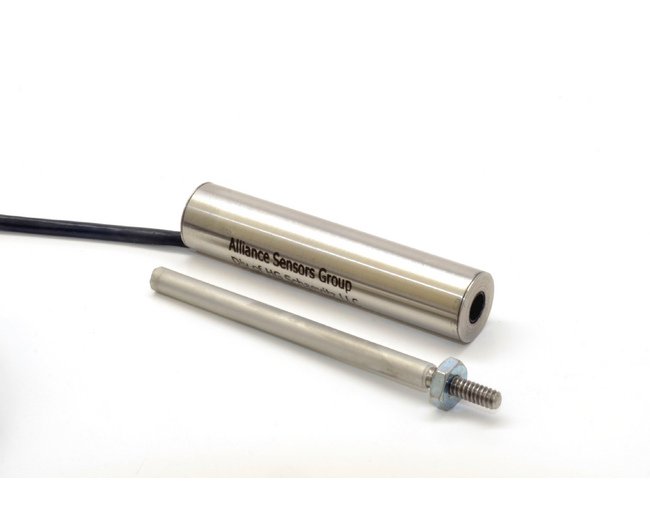

1/2" DC LVDT Sensor, 0.250" Stroke, 0-10V Output
1/2" DC LVDT Sensor, 0.250" Stroke, 0-10V Output
SKU:DCT-e3fe98
Enhance precision with the 1/2" DC LVDT Sensor for accurate measurements in diverse applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
1/2" DC LVDT Sensor, 0.250" Stroke, 0-10V Output
$69.99
Quantity: 1
Claim Your Seller Account
1/2" DC LVDT Sensor, 0.250" Stroke, 0-10V Output
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your sensing capabilities with the 1/2 inch DC Linear Variable Differential Transformer (LVDT) Sensor. This high-precision sensor, with a stroke of 0.250 inches and 0 to 10 volts output, offers exceptional linearity <0.25% of full scale and resolution of 0.025%. Built with a stainless steel body for durability, it operates in a wide temperature range from -40 to 105°C. Approved by the European Conformity (CE), this sensor ensures reliable performance in various applications, offering a 300 Hz update rate and 1-meter cable termination.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Axial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
1/2 in
Technical Specs Range
0.250 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
0.250 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Termination
1 m Cable
Technical Specs Update Rate
300 Hz
