1/2 in Male Branch Tee Fitting for National Pipe Thread Connection
1/2 in Male Branch Tee Fitting for National Pipe Thread Connection
SKU:SMB-0654b4
Enhance connections with precision using our Male Branch Tee Fitting for NPT threads. i-Fitting® design ensures safety and efficiency.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
1/2 in Male Branch Tee Fitting for National Pipe Thread Connection
$29.99
Quantity: 1
Claim Your Seller Account
1/2 in Male Branch Tee Fitting for National Pipe Thread Connection
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

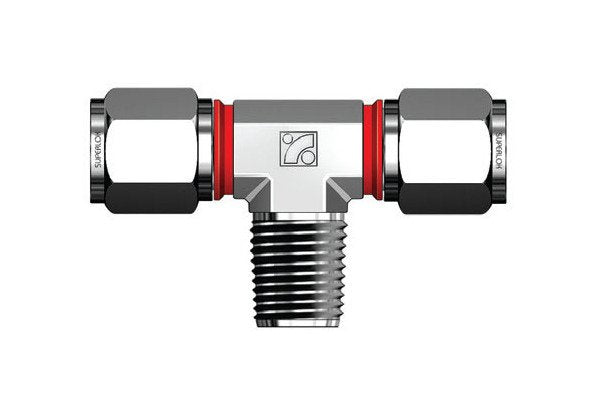

The SMBTI Series 1/2 in Tube Outside Diameter and 1/2 in Thread Size Male Branch Tee Fitting is designed to connect fractional tubes to female NPT threads. Crafted from a range of durable materials including Stainless Steel and Aluminum, this fitting features i-Fitting® components for secure and precise installations. With a built-in check ring for optimal compression, it ensures safety in high-pressure environments, increases productivity, and reduces costs. This industry-changing design by BMT is not only innovative but also adaptable to valve connections, offering reliability and efficiency. Dimensions provided are for reference only and Superlok® nuts ensure a secure fit.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

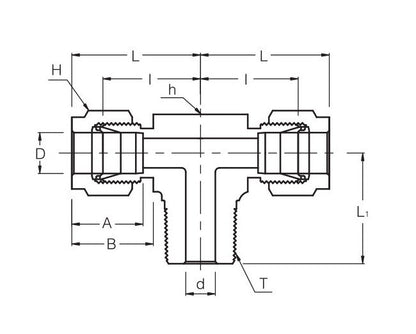

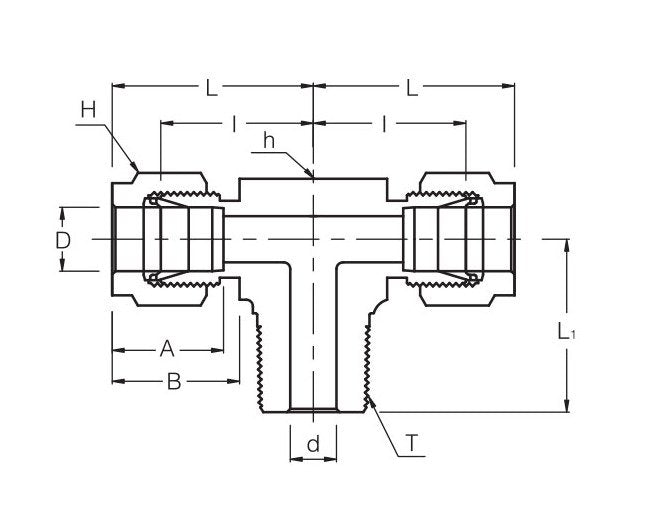

Technical Specs Connection Type
Male
Technical Specs Dimension A
22.86 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension I
25.9 mm
Technical Specs Dimension L
36.06 mm
Technical Specs Dimension L1
33.02 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
10.41 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/2 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1/2 in
Technical Specs Width Across Flat H
7/8 in
