1/2 in Multi-Port Needle Valve

1/2 in Multi-Port Needle Valve

MUL-1a4677

Reliable 1/2 in Multi-Port Needle Valve, Stainless Steel, ASME B1.20.1 Compliant

$49.99
$49.99
Sale

Initiate Order

1/2 in Multi-Port Needle Valve

1/2 in Multi-Port Needle Valve

$49.99

Quantity: 1

Claim Your Seller Account

1/2 in Multi-Port Needle Valve

1/2 in Multi-Port Needle Valve

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

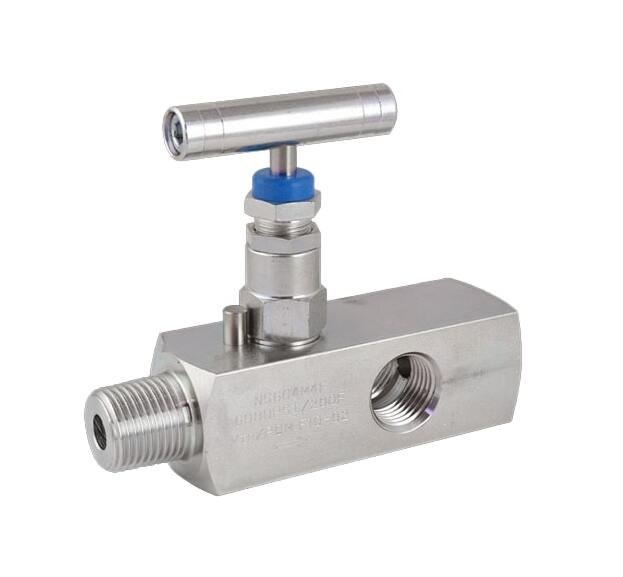

The 1/2 Inch Multi-Port Needle Valve is engineered for precision and durability. With a thread size of 1/2 inch and a working pressure of 6000 psi, this valve ensures reliable performance in demanding conditions. Constructed from stainless steel and featuring a PolyOxyMethylene Soft Seat, it meets American Society of Mechanical Engineers (ASME) B1.20.1 and NACE standards for quality and safety. The male x female NPT thread type and ASME B1.20.1 conformity make installation seamless and secure, catering to both consumer and institutional requirements.

Product Specifications

Features Features
Threads Conform to ASME B1.20.1

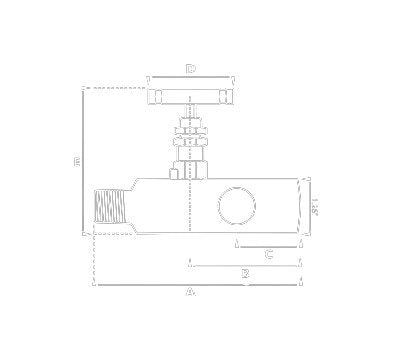

Technical Specs Dimension A
4.45 in
Technical Specs Dimension B
2.5 in
Technical Specs Dimension C
1.42 in
Technical Specs Dimension D
2.4 in
Technical Specs Dimension E
3.54 in
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B1.20.1 | National Association of Corrosion Engineers (NACE) Compliant
Technical Specs Material
Stainless
Technical Specs Seat Material
PolyOxyMethylene (POM) Soft Seat
Technical Specs Thread Size
1/2 in
Technical Specs Thread Type
Male x Female National Pipe Thread (NPT)
Technical Specs Working Pressure
6000 psi
