1/2 in Tube Male Pipe Weld Elbow, SMPWEI Series

Name: 1/2 in Tube Male Pipe Weld Elbow, SMPWEI Series
Brand: Superlok-Mako Products LLC
SKU: SMP-712023
Price: 24.99 USD
Availability: OutOfStock

SKU:SMP-712023

Securely connect fractional tubes to pipes with precision and safety using the SMPWEI Series 1/2 in Tube Male Pipe Weld Elbow. Enhance productivity and reliability in demanding industrial settings.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

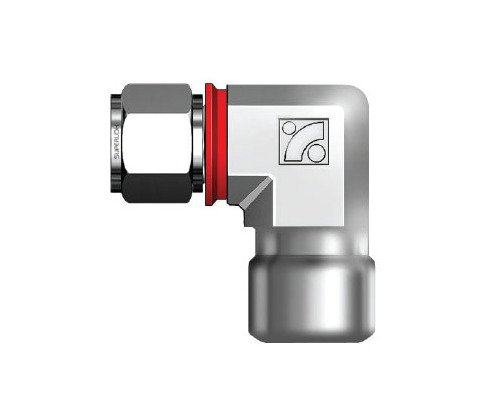

The SMPWEI Series 1/2 Inch Tube Male Pipe Weld Elbow is expertly designed to securely connect fractional tubes to pipes. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this elbow ensures durability and reliability. Featuring the patented i-Fitting® components, this fitting enhances installer safety, increases productivity, and offers a precise compression mechanism, reducing costs and solving common tightening issues. With dimensions designed for optimal performance and compatibility with various industrial applications, this elbow is a perfect solution for high pressure and hazardous chemical environments.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

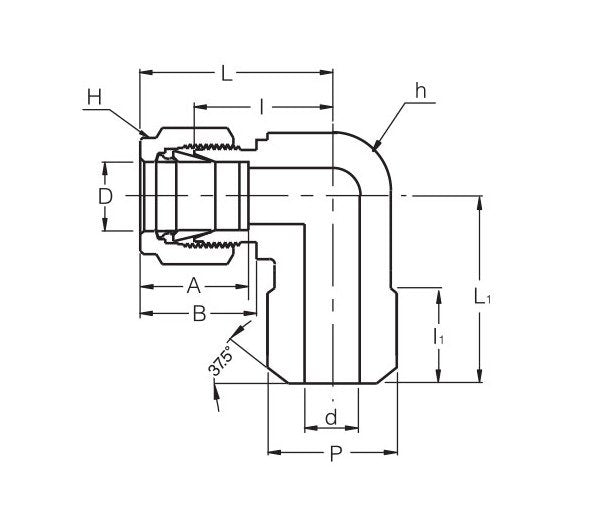

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Connection Type

Male

Technical Specs Dimension A

22.86 mm

Technical Specs Dimension B

21.84 mm

Technical Specs Dimension I

25.9 mm

Technical Specs Dimension I1

19.05 mm

Technical Specs Dimension L

36.06 mm

Technical Specs Dimension L2

33.02 mm

Technical Specs Male Pipe Outside Diameter

21.30 mm

Technical Specs Material

Technical Specs Minimum Dimension D

10.41 mm

Technical Specs Nominal Male Pipe Size P

1/2 mm

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Tube Outside Diameter D

1/2 in

Technical Specs Width Across Flat H

7/8 in
