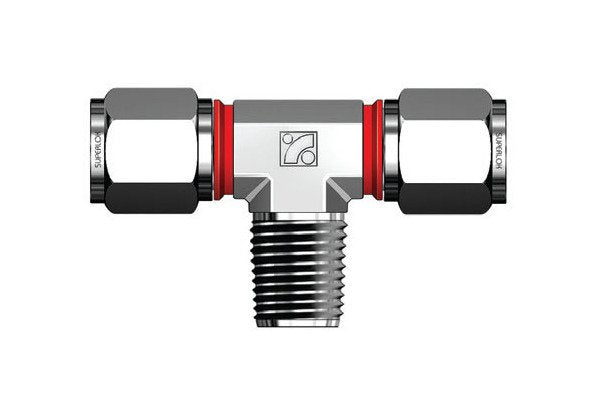

1/2 in Tube OD x 3/8 in NPT Male Branch Tee Fitting - SMBTI Series

Name: 1/2 in Tube OD x 3/8 in NPT Male Branch Tee Fitting - SMBTI Series
Brand: Superlok-Mako Products LLC
SKU: SMB-aececb
Price: 24.99 USD
Availability: OutOfStock

SKU:SMB-aececb

Enhance your piping systems with the SMBTI Series Male Branch Tee Fitting - ideal for secure tube-to-thread connections. Safety, precision, and efficiency in one!

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SMBTI Series Male Branch Tee Fitting is a precision-engineered connector designed to link fractional tubes to female NPT threads seamlessly. Crafted from top-grade materials including Alloy 625, Carbon Steel, and Stainless Steel, this fitting ensures durability and reliability. Its innovative i-Fitting® design features a check ring for precise compression, enhancing safety and efficiency in high-pressure environments. With dimensions meeting industry standards, this fitting guarantees a leak-free and secure connection for various applications.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

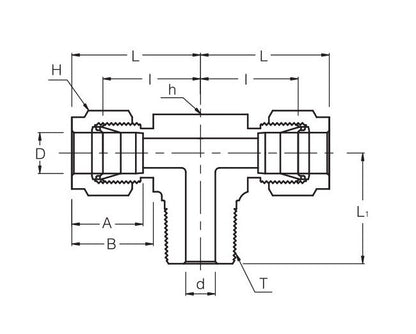

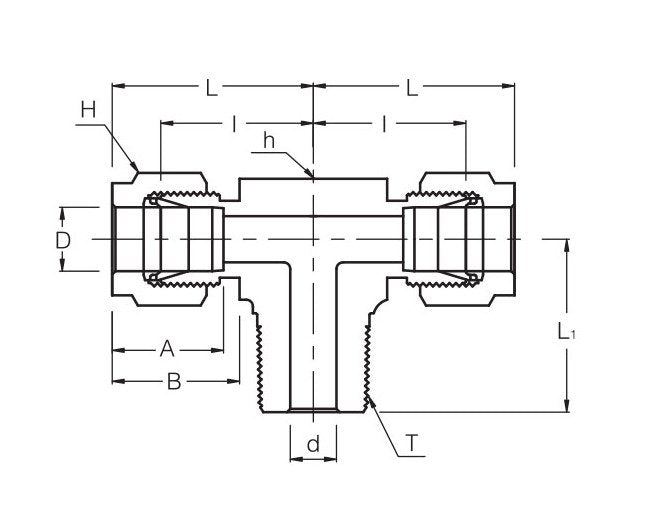

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Connection Type

Male

Technical Specs Dimension A

22.86 mm

Technical Specs Dimension B

21.84 mm

Technical Specs Dimension I

25.9 mm

Technical Specs Dimension L

36.06 mm

Technical Specs Dimension L1

28.19 mm

Technical Specs Material

Technical Specs Minimum Dimension D

9.65 mm

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Thread Size T

3/8 in

Technical Specs Thread Type

National Pipe Thread (NPT)

Technical Specs Tube Outside Diameter D

1/2 in

Technical Specs Width Across Flat H

7/8 in
