1/2 Inch 316-NM Stainless Steel Shackle Pin

Name: 1/2 Inch 316-NM Stainless Steel Shackle Pin
Brand: Lexco Cable Manufacturing
SKU: WIR-1170b4
Price: 24.99 USD
Availability: OutOfStock

SKU:WIR-1170b4

Premium 1/2 Inch 316-NM Stainless Steel Shackle Pin for heavy-duty industrial use. Durable, precise, and load rated up to 3,000 lb.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 1/2 Inch 316-NM Stainless Steel Shackle Pin is a heavy-duty replacement pin designed for chain and anchor shackles. Constructed from premium 316-NM stainless steel, this precision-machined pin offers exceptional durability and strength, with a working load limit of 3,000 lb. It meets stringent procurement standards and is compatible with various industrial applications, ensuring reliability and safety in your operations.

Product Specifications

Note 0

Replacement pin. Compatible with chain shackles (S0115-FS) and anchor shackles (S0116-FS).

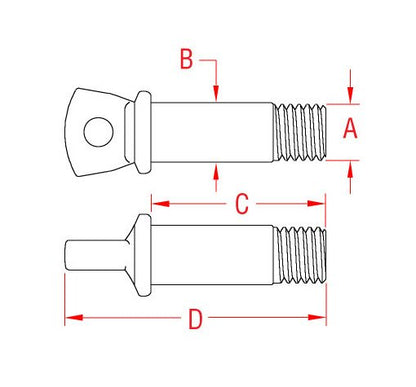

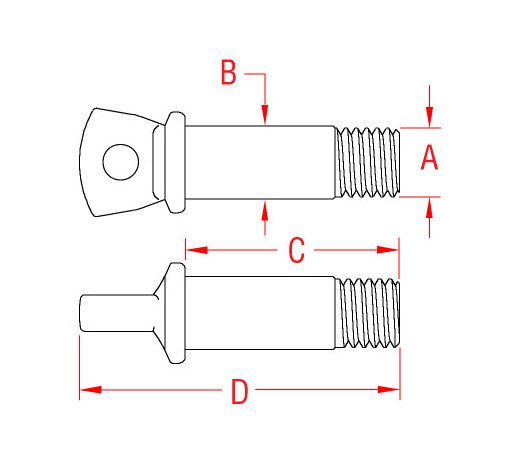

Specifications C

1.82 "

Specifications D

2.85 "

Specifications Dimension A

5/8 in.-11

Specifications Dimension B

0.63 "

Specifications Key Features

Import | Load Rated | Precision Machined

Specifications Material

316-NM Stainless Steel

Specifications Size

1/2 "

Specifications Weight

0.22 lb

Specifications Wll

3,000 lb

CAGE

0T9L4

NAICS

332999

PSC

5340

1/2 Inch 316-NM Stainless Steel Shackle Pin
