1/2 Inch 316 Stainless Steel Long D Shackle with Captive Pin

Name: 1/2 Inch 316 Stainless Steel Long D Shackle with Captive Pin
Brand: Lexco Cable Manufacturing
SKU: WIR-2688f9
Price: 29.99 USD
Availability: OutOfStock

SKU:WIR-2688f9

Premium 1/2 Inch 316 Stainless Steel Long D Shackle with Captive Pin.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 1/2 Inch 316 Stainless Steel Long D Shackle with Captive Pin is a reliable and durable wire rope hardware essential. Crafted from high-grade 316 Stainless Steel, this precision cast D shackle ensures superior strength and corrosion resistance, ideal for demanding applications. With a Working Load Limit of 1,500 lb, this shackle guarantees secure lifting operations. The captive screw pin design enhances safety by preventing accidental detachment, meeting stringent institutional procurement standards.

Product Specifications

Note 0

Screw pin is captive and not removable. When it's fully opened, the end of the pin will sit flush with the inside of the shackle.

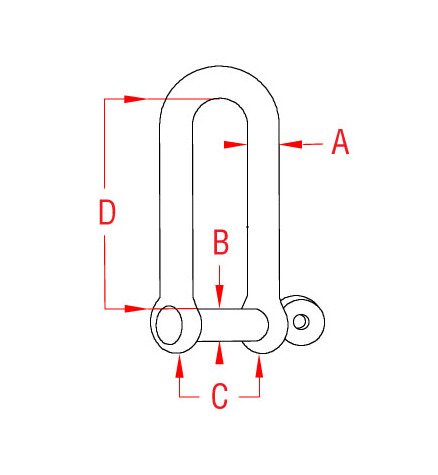

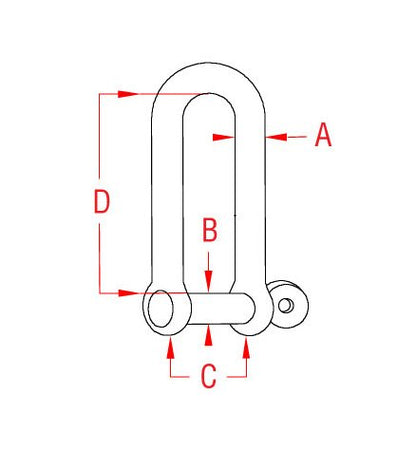

Specifications C

0.93 "

Specifications D

3.54 "

Specifications Dimension B

0.47 "

Specifications Key Features

Import | Precision Cast

Specifications Material

316 Stainless Steel

Specifications Shackle Type

D Shackle

Specifications Size A

1/2 "

Specifications Weight

0.57 lb

Specifications Wll

1,500 lb

CAGE

0T9L4

NAICS

332999

PSC

5340

1/2 Inch 316 Stainless Steel Long D Shackle with Captive Pin
