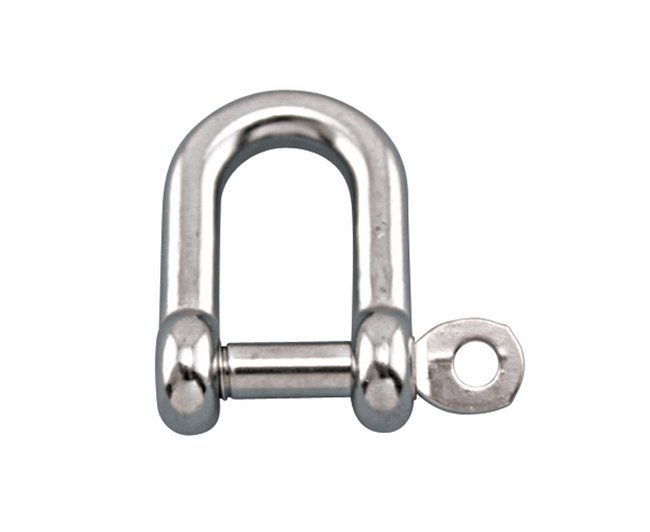

1/2 Inch 316 Stainless Steel Straight D Shackle with Captive Pin

Name: 1/2 Inch 316 Stainless Steel Straight D Shackle with Captive Pin
Brand: Lexco Cable Manufacturing
SKU: WIR-186beb
Price: 29.99 USD
Availability: OutOfStock

SKU:WIR-186beb

High-performance 1/2" 316 Stainless Steel Straight D Shackle with Captive Pin, ideal for lifting and towing applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 1/2 Inch 316 Stainless Steel Straight D Shackle with Captive Pin is crafted for heavy-duty lifting and towing applications. Constructed from high-quality 316 stainless steel, this shackle offers exceptional durability and corrosion resistance. Its captive screw pin ensures secure fastening, while the precision cast design guarantees reliability under high loads. With a Working Load Limit (WLL) of 1,500 lbs, this shackle is suitable for a wide range of industrial and marine settings, meeting stringent institutional procurement standards.

Product Specifications

Note 0

Screw pin is captive and not removable. When it's fully opened, the end of the pin will sit flush with the inside of the shackle.

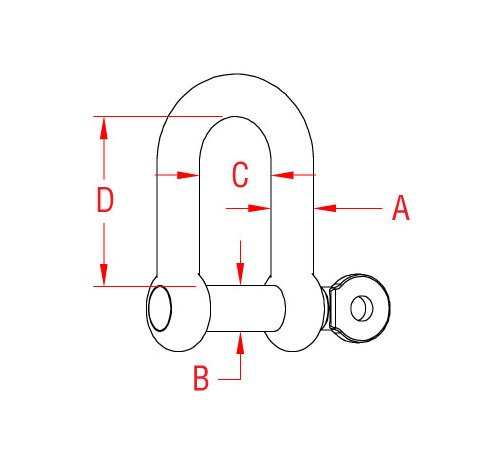

Specifications C

0.95 "

Specifications D

1.65 "

Specifications Dimension B

0.47 "

Specifications Key Features

Import | Precision Cast

Specifications Material

316 Stainless Steel

Specifications Shackle Type

D Shackle

Specifications Size A

1/2 "

Specifications Weight

0.38 lb

Specifications Wll

1,500 lb

CAGE

0T9L4

NAICS

332999

PSC

5340

1/2 Inch 316 Stainless Steel Straight D Shackle with Captive Pin
