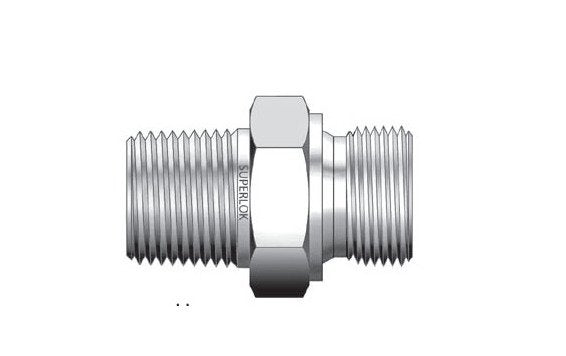

1/2 inch Hex Nipple Fitting - IHN Series NPT/ISO Parallel
1/2 inch Hex Nipple Fitting - IHN Series NPT/ISO Parallel
SKU:IHN-9367b2
High-quality 1/2in Hex Nipple Fitting for secure and leak-free connections. Male NPT to male ISO parallel threads for versatile use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
1/2 inch Hex Nipple Fitting - IHN Series NPT/ISO Parallel
$24.99
Quantity: 1
Claim Your Seller Account
1/2 inch Hex Nipple Fitting - IHN Series NPT/ISO Parallel
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The IHN Series 1/2 inch Hex Nipple Fitting is designed for seamless connectivity, ensuring leak-free performance. Crafted from high-quality 316 stainless steel, brass, or carbon steel, it offers exceptional durability. With male NPT to male ISO parallel pipe threads, this fitting guarantees a secure and reliable connection. Its precise dimensions and versatile thread types make it suitable for a wide range of applications, meeting the highest standards of quality and performance.
Product Specifications
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

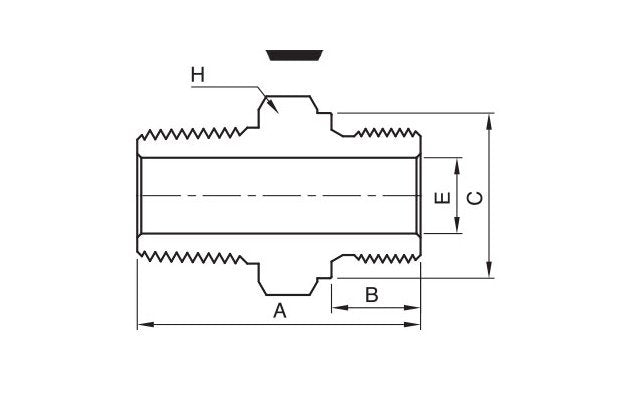

Technical Specs Dimension A
44.4 mm
Technical Specs Dimension B
14 mm
Technical Specs Dimension C
25.9 mm
Technical Specs Dimension E
11.9 mm
Technical Specs Dimension H
26.9 mm
Technical Specs Material
316 Stainless Steel | Brass | Carbon Steel
Technical Specs Pipe Size International Organization For Standar
1/2 in
Technical Specs Pipe Size National Pipe Thread Npt
1/2 in
Technical Specs Thread Type
British Standard Pipe (BSP) | International Organization for Standardization (ISO) | National Pipe Thread (NPT)
