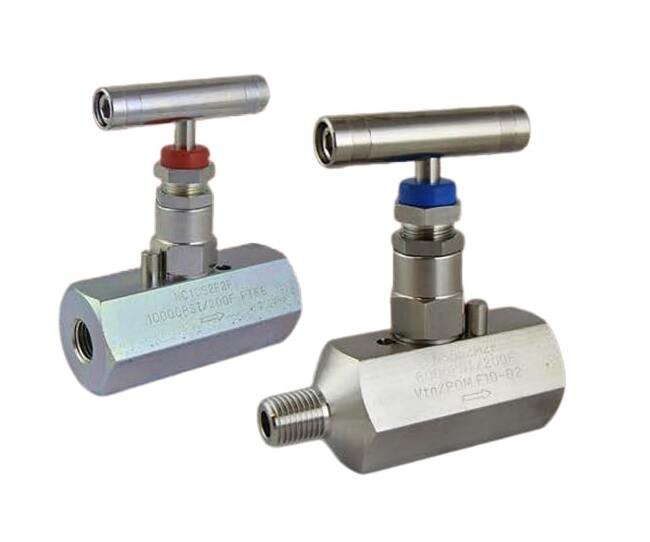

1/2 Inch Male x Female NPT Stainless Needle Valve
1/2 Inch Male x Female NPT Stainless Needle Valve
SKU:STA-49a67d
High-performance stainless steel needle valve, withstands up to 10000 psi pressure. ASME B1.20.1 & NACE compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
1/2 Inch Male x Female NPT Stainless Needle Valve
$49.99
Quantity: 1
Claim Your Seller Account
1/2 Inch Male x Female NPT Stainless Needle Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1/2 Inch Male x Female NPT Stainless Needle Valve is a high-performance valve designed to withstand pressures up to 10000 psi. Constructed from durable stainless steel with a hard seat material, this needle valve ensures long-lasting, reliable performance. Conforming to American Society of Mechanical Engineers (ASME) B1.20.1 and National Association of Corrosion Engineers (NACE) standards, it guarantees exceptional quality and compliance for industrial applications.
Product Specifications
Features Features
Threads Conform to ASME B1.20.1

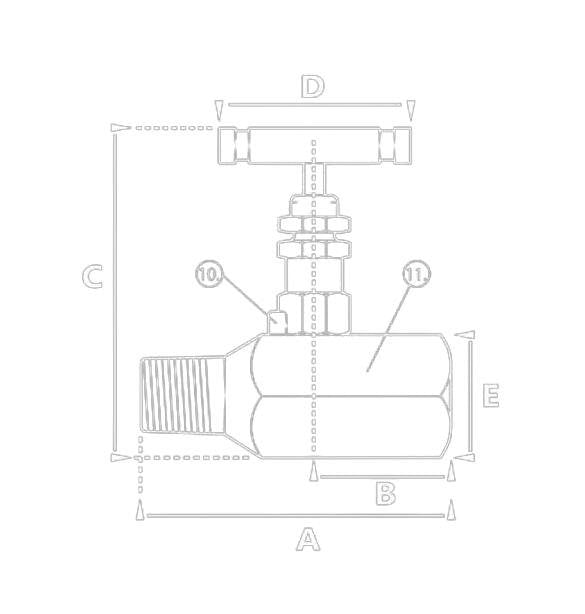

Technical Specs Dimension A
3.23 in
Technical Specs Dimension B
1.62 in
Technical Specs Dimension C
3.54 in
Technical Specs Dimension D
2.24 in
Technical Specs Dimension E
1.26 in
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B1.20.1 | National Association of Corrosion Engineers (NACE) Compliant
Technical Specs Material
Stainless
Technical Specs Seat Material
Hard Seat
Technical Specs Thread Size
1/2 in
Technical Specs Thread Type
Male x Female National Pipe Thread (NPT)
Technical Specs Working Pressure
10000 psi
