1/2 Inch Stainless Steel Female Needle Valve
1/2 Inch Stainless Steel Female Needle Valve
SKU:STA-275a40
Premium 1/2 Inch Stainless Steel Female Needle Valve for precise high-pressure flow control. ASME and NACE compliant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
1/2 Inch Stainless Steel Female Needle Valve
$59.99
Quantity: 1
Claim Your Seller Account
1/2 Inch Stainless Steel Female Needle Valve
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

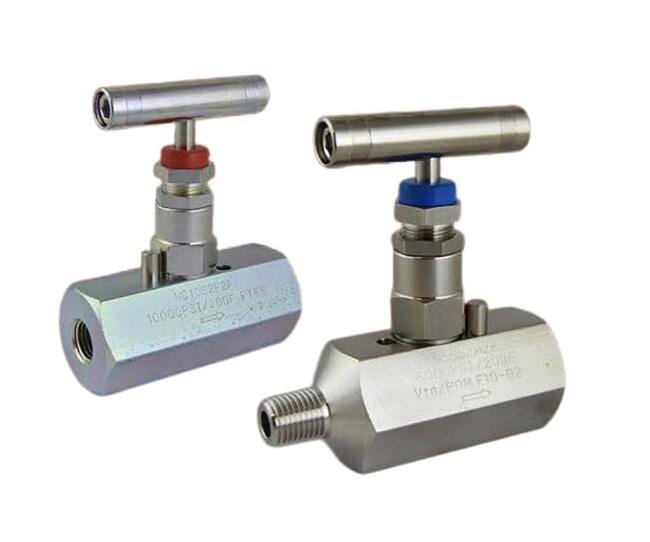

The 1/2 Inch Stainless Steel Female Needle Valve is a top-quality component designed for precise flow control in high-pressure systems. Crafted with stainless steel and meeting stringent ASME and NACE standards, this needle valve ensures reliable performance at pressures up to 10000 psi. With a hard seat for durability, this valve features female x female NPT threads that conform to ASME B1.20.1. Explore this robust valve for dependable operation in demanding industrial environments.
Product Specifications
Features Features
Threads Conform to ASME B1.20.1

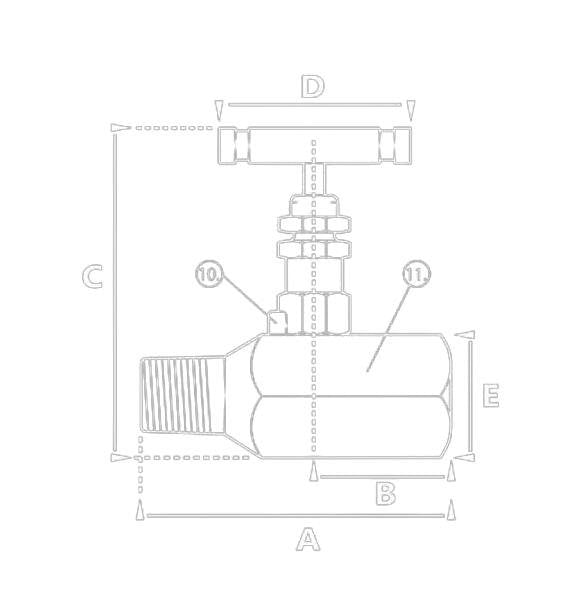

Technical Specs Dimension A
3.23 in
Technical Specs Dimension B
1.62 in
Technical Specs Dimension C
3.54 in
Technical Specs Dimension D
2.24 in
Technical Specs Dimension E
1.26 in
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B1.20.1 | National Association of Corrosion Engineers (NACE) Compliant
Technical Specs Material
Stainless
Technical Specs Seat Material
Hard Seat
Technical Specs Thread Size
1/2 in
Technical Specs Thread Type
Female x Female National Pipe Thread (NPT)
Technical Specs Working Pressure
10000 psi
