1/2 Inch Stainless Steel Needle Valve, ASME B1.20.1 Compliant

Name: 1/2 Inch Stainless Steel Needle Valve, ASME B1.20.1 Compliant
Brand: Superlok-Mako Products LLC
SKU: STA-930416
Price: 49.99 USD
Availability: OutOfStock

SKU:STA-930416

Precision flow control with 1/2 Inch Stainless Steel Needle Valve, ASME B1.20.1 compliant

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

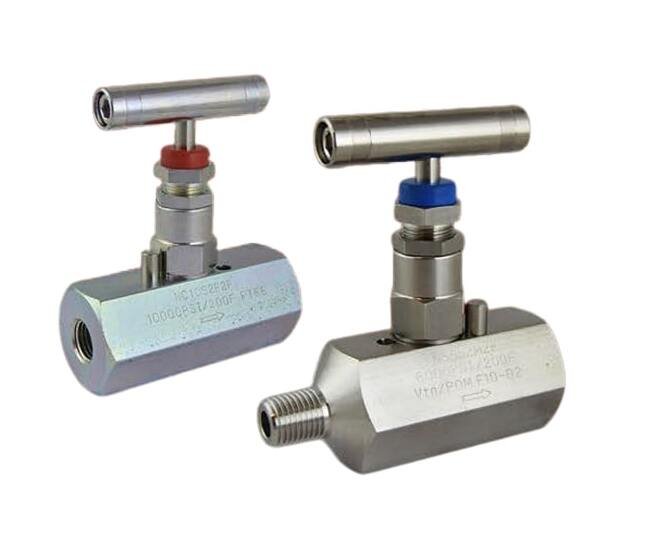

The 1/2 Inch Thread Size Standard Pattern Needle Valve is a durable and reliable solution for precision flow control. Constructed from high-quality stainless steel, this valve ensures a working pressure of 6000 psi, making it suitable for demanding industrial applications. The PolyOxyMethylene (POM) Soft Seat provides a tight seal for optimal performance. With dimensions meeting industry standards and ASME B1.20.1 conformity, this needle valve is a top choice for efficiency and longevity.

Product Specifications

Features Features

Threads Conform to ASME B1.20.1

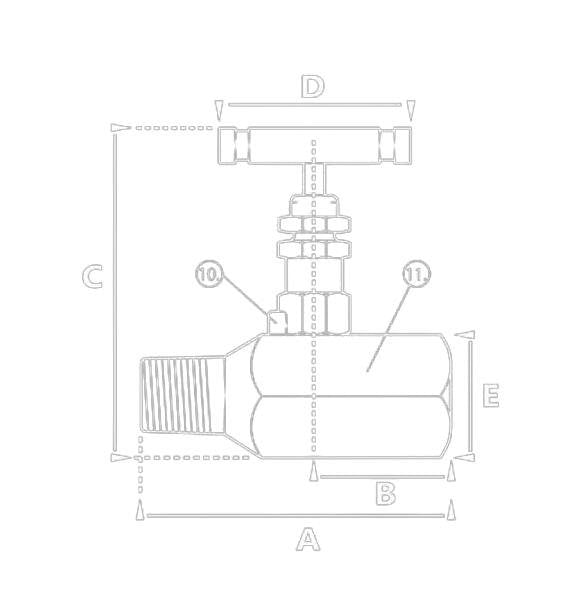

Technical Specs Dimension A

3.23 in

Technical Specs Dimension B

1.62 in

Technical Specs Dimension C

3.54 in

Technical Specs Dimension D

2.24 in

Technical Specs Dimension E

1.26 in

Technical Specs Industry Standards

American Society of Mechanical Engineers (ASME) B1.20.1 | National Association of Corrosion Engineers (NACE) Compliant

Technical Specs Material

Stainless

Technical Specs Seat Material

PolyOxyMethylene (POM) Soft Seat

Technical Specs Thread Size

1/2 in

Technical Specs Thread Type

Female x Female National Pipe Thread (NPT)

Technical Specs Working Pressure

6000 psi

1/2 Inch Stainless Steel Needle Valve, ASME B1.20.1 Compliant
