1/2 Inch Standard Pattern Needle Valve - NPT Stainless Steel
1/2 Inch Standard Pattern Needle Valve - NPT Stainless Steel
SKU:STA-11c212
Precision control with 1/2 in Standard Pattern Needle Valve - NPT, Stainless Steel, ASME B1.20.1, NACE Compliant
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
1/2 Inch Standard Pattern Needle Valve - NPT Stainless Steel
$49.99
Quantity: 1
Claim Your Seller Account
1/2 Inch Standard Pattern Needle Valve - NPT Stainless Steel
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

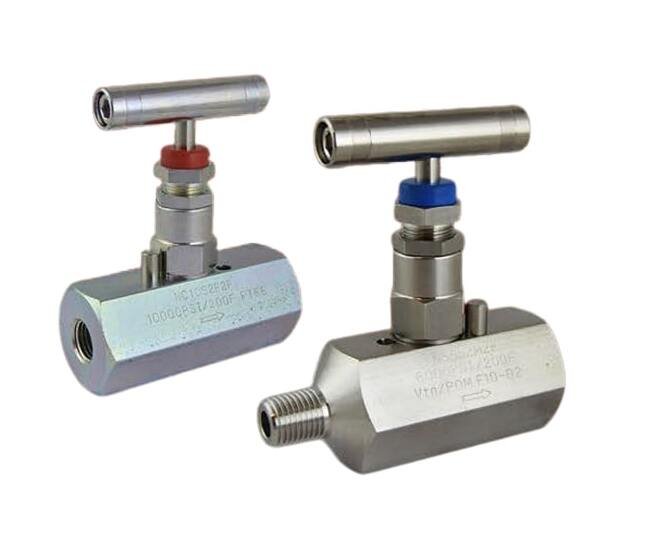

The 1/2 Inch Standard Pattern Needle Valve is a high-quality product designed for precise flow control in industrial settings. Featuring a 1/2 inch Male x Female National Pipe Thread (NPT) and constructed from durable stainless steel, this valve is built to withstand working pressures of up to 6000 psi. The PolyOxyMethylene (POM) Soft Seat ensures a tight seal, while its compact dimensions make it versatile for various applications. This valve meets the standards of the American Society of Mechanical Engineers (ASME) B1.20.1 and is National Association of Corrosion Engineers (NACE) Compliant, offering reliability and performance to meet your operational needs.
Product Specifications
Features Features
Threads Conform to ASME B1.20.1

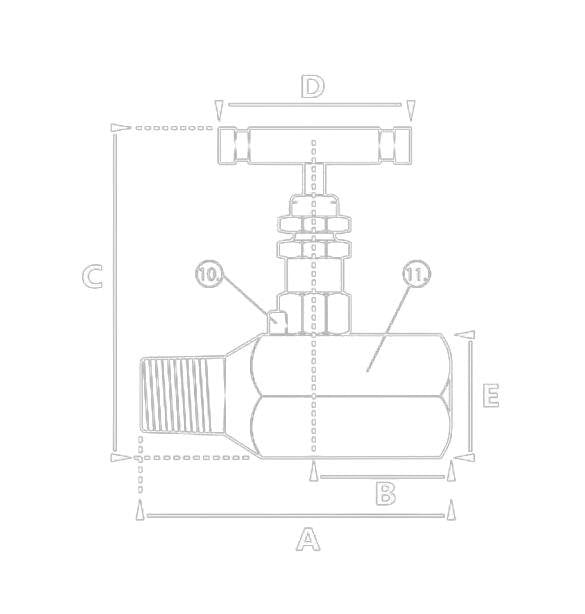

Technical Specs Dimension A
3.23 in
Technical Specs Dimension B
1.62 in
Technical Specs Dimension C
3.54 in
Technical Specs Dimension D
2.24 in
Technical Specs Dimension E
1.26 in
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B1.20.1 | National Association of Corrosion Engineers (NACE) Compliant
Technical Specs Material
Stainless
Technical Specs Seat Material
PolyOxyMethylene (POM) Soft Seat
Technical Specs Thread Size
1/2 in
Technical Specs Thread Type
Male x Female National Pipe Thread (NPT)
Technical Specs Working Pressure
6000 psi
