1/2 Inch SUPERLOK End Connections Quick Connector
1/2 Inch SUPERLOK End Connections Quick Connector
SKU:SQC-76f591
Reliable 1/2 Inch SUPERLOK Quick Connector for secure fluid/gas transfer with push-pull action & valved options. Made of high-quality materials.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
1/2 Inch SUPERLOK End Connections Quick Connector
$39.99
Quantity: 1
Claim Your Seller Account
1/2 Inch SUPERLOK End Connections Quick Connector
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SQC Series 1/2 Inch SUPERLOK End Connections Instrumentation Quick Connector Fitting is a versatile and reliable plug type fitting with a flow coefficient of 3.3. Made of high-quality 316 stainless steel or brass, it features a simple push-pull action for easy connections without the need for tools. With coupled pressure ratings of 750 psig at 70°F and 250 psig at 400°F, this fitting ensures secure and efficient fluid or gas transfer. The valved options minimize liquid or gas loss during connections and disconnections. Dimensions and drawings may vary and additional sizes and end connections are available upon request.
Product Specifications
Features Features
Simple push-pull action to connect and disconnect lines-no tools required.Plug and body are available valved or unvalved. Valves automatically open when connected and shut off when disconnected to minimize the loss of liquids or gases.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Coupled Pressure Rating At 400 Degree Fahrenheit
250 psig | 17.2 bar
Technical Specs Coupled Pressure Rating At 70 Degree Fahrenheit
750 psig | 51.6 bar

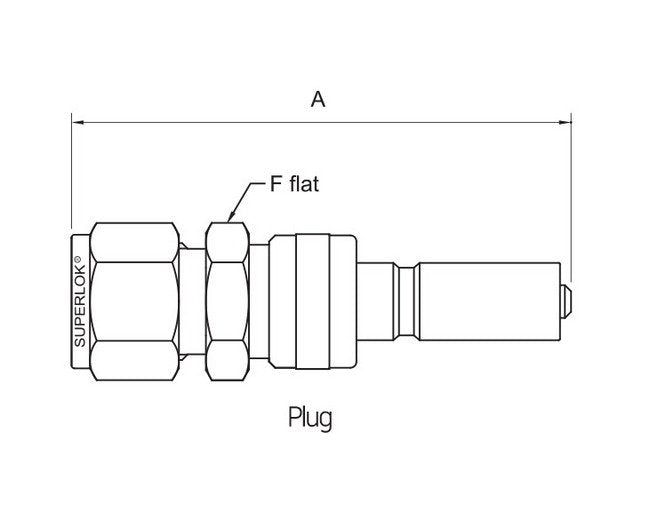

Technical Specs Dimension A
80.3 mm
Technical Specs Dimension F
23.8 mm
Technical Specs End Connections
1/2 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
3.3
Technical Specs Insertion Depth
1.48 in | 37.6 mm
Technical Specs Maximum Flow Rate Water At 70 Degree Fahrenheit
37 L/min | 10 gpm
Technical Specs Plug Type
Single Shutoff Plug
Technical Specs Type
Plug
