1/2 Inch SUPERLOK Instrumentation Quick Connector Fitting
1/2 Inch SUPERLOK Instrumentation Quick Connector Fitting
SKU:SQC-40a471
Secure and leak-free 1/2 Inch SUPERLOK Instrumentation Quick Connector Fitting for precise industrial applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
1/2 Inch SUPERLOK Instrumentation Quick Connector Fitting
$39.99
Quantity: 1
Claim Your Seller Account
1/2 Inch SUPERLOK Instrumentation Quick Connector Fitting
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SQC Series 1/2 Inch SUPERLOK Instrumentation Quick Connector Fitting ensures secure and leak-free connections. Featuring a double shutoff plug and 316 Stainless Steel body, it offers a coupled pressure rating of 750 psig. With a simple push-pull mechanism and valved options, it allows easy and safe disconnection while minimizing fluid loss. Ideal for industrial applications requiring precision and reliability.
Product Specifications
Features Features
Simple push-pull action to connect and disconnect lines-no tools required.Plug and body are available valved or unvalved. Valves automatically open when connected and shut off when disconnected to minimize the loss of liquids or gases.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Coupled Pressure Rating At 400 Degree Fahrenheit
250 psig | 17.2 bar
Technical Specs Coupled Pressure Rating At 70 Degree Fahrenheit
750 psig | 51.6 bar

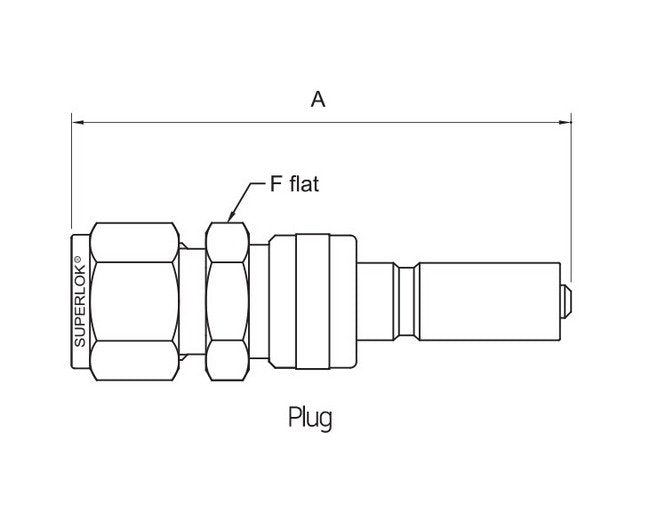

Technical Specs Dimension F
23.8 mm
Technical Specs End Connections
1/2 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
3.3
Technical Specs Insertion Depth
1.68 in | 42.7 mm
Technical Specs Maximum Flow Rate Water At 70 Degree Fahrenheit
37 L/min | 10 gpm
Technical Specs Note For Spillage
Spillage is the amount of system fluid that escapes when a quick-connect is uncoupled (double shut off only)
Technical Specs Plug Type
Double Shutoff Plug
Technical Specs Spillage
3.0 cm³
Technical Specs Type
Plug
