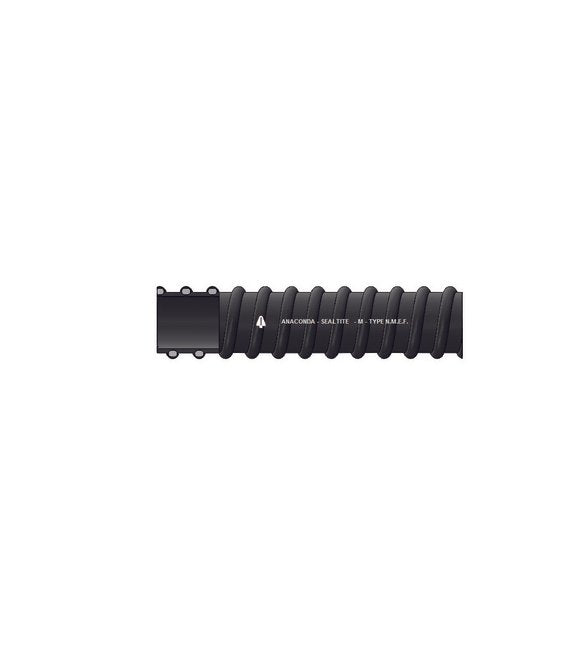

1/2" Non-Metallic Mechanical Protection Tubing
1/2" Non-Metallic Mechanical Protection Tubing
SKU:LIQ-3dce7e
Durable 1/2" Non-Metallic Tubing with exceptional crush resistance and CSA certification for industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
1/2" Non-Metallic Mechanical Protection Tubing
$129.99
Quantity: 1
Claim Your Seller Account
1/2" Non-Metallic Mechanical Protection Tubing
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1/2" Non-Metallic Mechanical Protection Tubing offers exceptional crush and corrosion resistance with its rigid, non-metallic reinforcement embedded in a flexible PVC wall. This tubing is constructed with durable, sunlight-resistant, and flame-retardant thermoplastic PVC, ensuring it resists heat, oil, and chemical breakdown. With CSA certification and RoHS WEEE compliance, this tubing is ideal for OEM machine building and industrial applications requiring tight bend radii.
Product Specifications
Application
OEM machine buildingIndustrial applications where tight bend radii are required.
Installation
Tubing used with fittings for non-metallic tubing Type B that comply with the requirements of C22.21 No. 227.3-05. IP 66/67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -0ºF to +176ºF (-18ºC to +80ºC) Wet: +60°C; Oil 70°C. Easy to install and cuts easily.Manufactured in a full range of trade sizes from 1/4" through 2".
Specifications Color
BLACK
Specifications Connector Type
Type B
Specifications Core Material
Polyvinyl Chloride (PVC)
Specifications Electrical Trade Size
1/2 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Bend Radius
3.25 in
Specifications Inside Diameter
.622-.640 in
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
100 ft
Specifications Naed Pin
3620160
Specifications Outside Diameter
.820-.840 in
Specifications Standard Length Coil
100 ft
