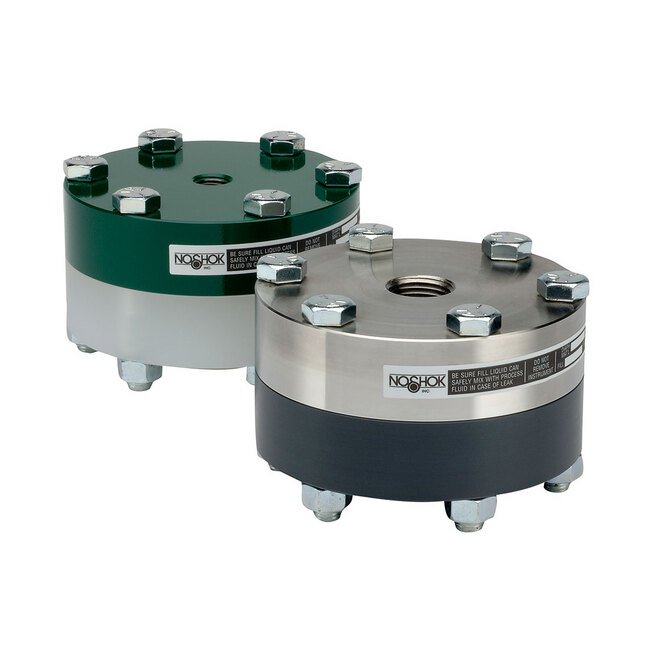

1/2" NPT Stainless Steel Diaphragm Seal with PVDF Lower Housing
1/2" NPT Stainless Steel Diaphragm Seal with PVDF Lower Housing
SKU:NOS-01d80c
Rugged 1/2" NPT Stainless Steel Diaphragm Seal with PVDF Lower Housing for reliable and remote pressure instrument mounting.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
1/2" NPT Stainless Steel Diaphragm Seal with PVDF Lower Housing
$299.99
Quantity: 1
Claim Your Seller Account
1/2" NPT Stainless Steel Diaphragm Seal with PVDF Lower Housing
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

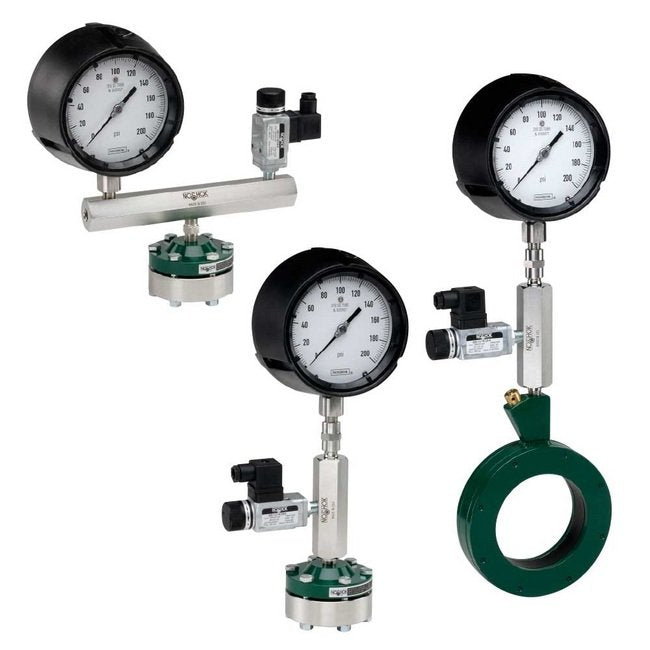

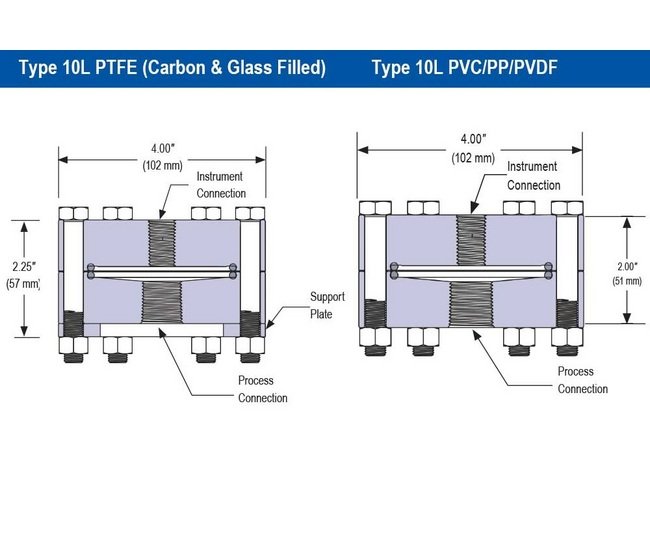

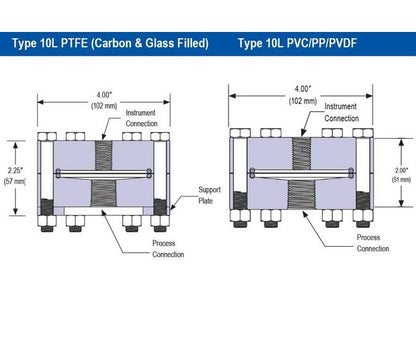

The 1/2" NPT Instrument Connection features a durable 316 Stainless Steel upper housing and a Polyvinylidene Fluoride (PVDF) lower housing, ideal for corrosive pressure media. This Type 10L Diaphragm Seal with Polytetrafluoroethylene (PTFE) Diaphragm ensures reliable performance in oil and gas, chemical processing, and industrial automation applications. With a replaceable diaphragm design and leak-free union, it meets institutional procurement standards by providing a robust solution for mounting pressure instruments remotely.
Product Specifications
Additional Information Additional Information
Process connection sizes from 1/4" NPT through 1-1/2" NPTConsider instrument size, pressure range, media composition, ambient and operating temperature, and maximum working pressure when selectingFill fluid must be compatible with process media; i.e. Glycerin may become volatile in conjunction with a strong oxidizing agent such as chlorine, forms of oxygen or peroxide and nitric acids
Application Application
Water and wastewaterOil and gasPetrochemicalChemical processingIndustrial automationMarineAgricultureSteel fabricationMud pumpingPulp and paperPneumatic
Bottom Housing Material Maximum Pressure And Temperature Limits
Metallic diaphragms determined by pressure range of seal type, restricted to temperature range of fill fluid.
Diaphragm Pressure And Temperature Limits Diaphragm Pressure Lim
2,000 psi
Diaphragm Pressure And Temperature Limits Diaphragm Temperature
-10 to 400 ºF
Diaphragm Pressure And Temperature Limits Note For Maximum Press
Metallic lower housings determined by pressure range of seal type, restricted to temperature range of fill fluid.
Instruments Pressure Max For Gauges 2 12 To 6 In Size
0 to 200 psig
Instruments Pressure Max For Switches
0 to 200 psig
Instruments Pressure Max For Transducers
0 to 200 psig
Instruments Pressure Min For Gauges 2 12 To 6 In Size
0 to 30 psig
Instruments Pressure Min For Switches
0 to 30 psig
Instruments Pressure Min For Transducers
0 to 30 psig
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation. Gauge failures determined to be caused by over-range, incompatibility with environment or product media and abuse will not be considered under this warranty. NOSHOK, Inc. will, at its discretion, repair or replace the working parts of the damaged gauge without cost to the customer.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Note Note
PTFE O-Rings standard with all other diaphragms

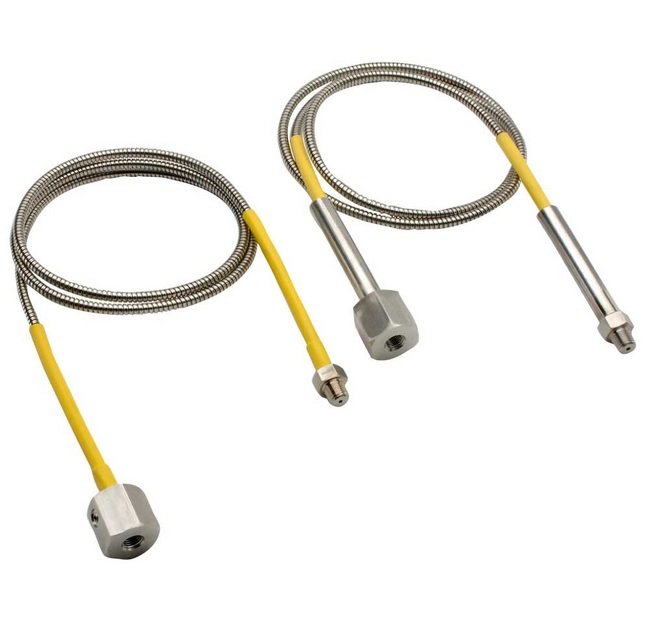

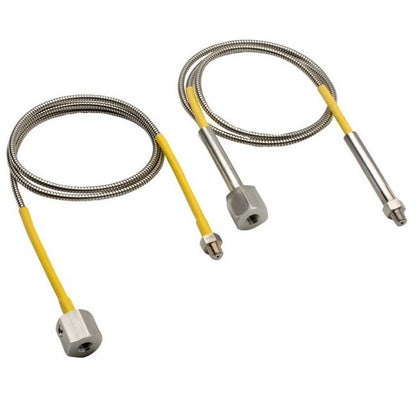

Options And Accessories Cooling Elements

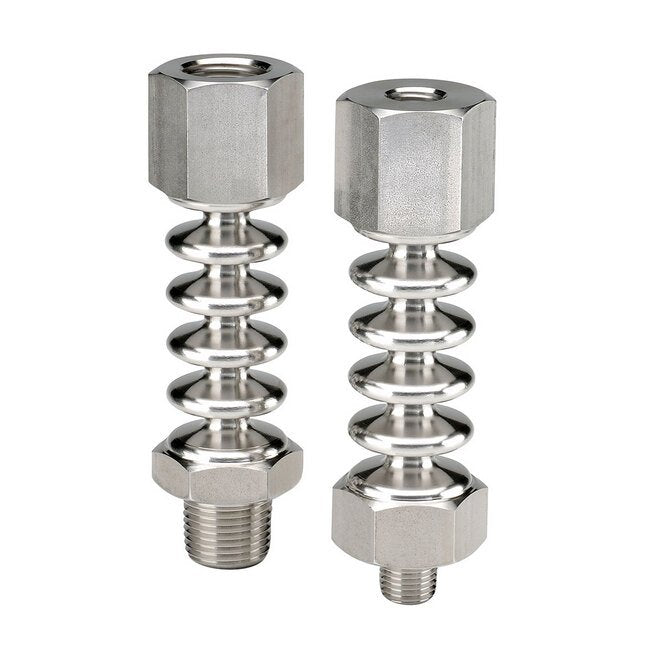

1/4" NPT x 1/4" NPT Cooling Element (1/4" NPT x 1/4" NPT-CE)1/2" NPT x 1/2" NPT Cooling Element (1/2" NPT x 1/2" NPT-CE)Works in combination with diaphragm seal to isolate instrument from high media temperaturesRecommended for process temperatures above 212 ºFRequires direct mounted systemEffective temperature reductions of 200 ºF depending upon ambient conditionsHigh >212 ºF process temperature, low < -40 ºF process temperatureAll Stainless Steel construction
Options And Accessories Diaphragm Seal Fill Options
Glycerin (GY) Not recommended for use in vacuum applications.)Silicone (SL)Halocarbon® (HL)Neobee M20 (NB)Mineral Oil (MO)Propylene Glycol (PG)
O Ring Temperature Limits O Ring Temperature Limits For Fluoroca
-10 to 400 ºF
O Ring Temperature Limits O Ring Temperature Limits For Nitrile
-40 to 250 ºF
O Ring Temperature Limits O Ring Temperature Limits For Polytetr
-400 to 400 ºF
Specifications Bolting Material
Zinc-Plated Steel
Specifications Diaphragm Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Size
3.0 in
Specifications Instrument Connection Size
1/2 in
Specifications Instrument Gauge Size
2-1/2 to 6 in
Specifications Lower Housing Connection Size
1/4 in | 1/2 in | 3/4 in | 1 in | 1-1/4 in | 1-1/2 in
Specifications Lower Housing Material
Polyvinylidene Fluoride (PVDF)
Specifications Optional Bolting Material
Stainless Steel
Specifications O Rings Material
Polytetrafluoroethylene (PTFE)
Specifications Process Connection Size
1/2 in
Specifications Upper Housing Material
316 Stainless Steel
