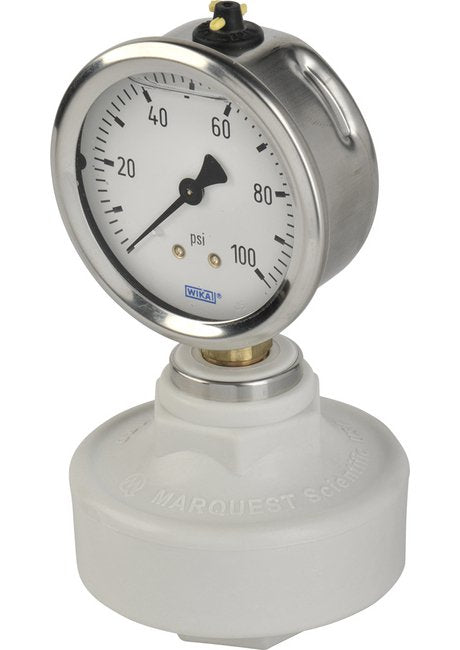

1/2" Polypro Gauge Isolator w/ Wika SS/Brss 2.5" Liquid Filled Gauge
1/2" Polypro Gauge Isolator w/ Wika SS/Brss 2.5" Liquid Filled Gauge
SKU:GAU-83aaf9
Enhance instrument protection with the TUFF GUARD Gauge Isolator, ensuring accurate pressure transmission and easy maintenance.
Regular price
$230.95
Regular price
Sale price
$230.95
Unit price
per
Initiate Order
1/2" Polypro Gauge Isolator w/ Wika SS/Brss 2.5" Liquid Filled Gauge
$230.95
Quantity: 1
Claim Your Seller Account
1/2" Polypro Gauge Isolator w/ Wika SS/Brss 2.5" Liquid Filled Gauge
$230.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your pressure sensing instruments with the TUFF GUARD Gauge Isolator featuring a PTFE diaphragm and stainless steel reinforced connections. This isolator provides total protection and accurate pressure transmission with a convoluted diaphragm design. Its low profile eliminates dead volume and ensures optimum pressure containment. Easy to install and maintain, this isolator comes with a 3-year warranty, making it a reliable choice for industrial applications.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/2" Female NPT
Specifications Installed Gauge
0-100 PSI, SS, Brass
Specifications List Price
230.95 USD
Specifications Materials
PP, PTFE Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
