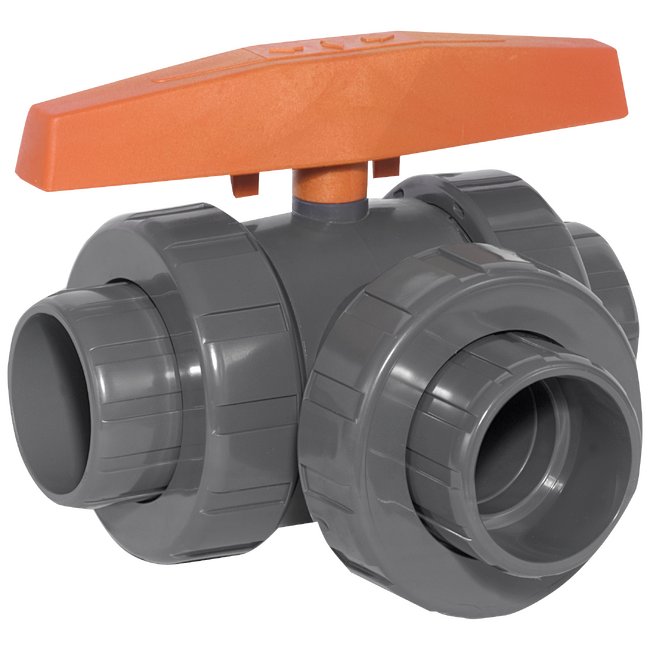

1/2" PVC 3-Way Lateral True Union Ball Valve w/ FPM O-rings, Flanged End - LA Series
1/2" PVC 3-Way Lateral True Union Ball Valve w/ FPM O-rings, Flanged End - LA Series
SKU:TRU-ef52ae
Reliable 1/2" PVC 3-Way Ball Valve for precise flow control with flanged end connections, FPM O-rings. Conforms to institutional standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
1/2" PVC 3-Way Lateral True Union Ball Valve w/ FPM O-rings, Flanged End - LA Series
$24.99
Quantity: 1
Claim Your Seller Account
1/2" PVC 3-Way Lateral True Union Ball Valve w/ FPM O-rings, Flanged End - LA Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1/2" PVC 3-Way Lateral True Union Ball Valve from the LA Series is designed for precise flow control, diverting flow from the center port to either the left or right ports seamlessly. With flanged end connections and FPM O-rings, this valve ensures reliable and leak-free operation. Built to meet institutional standards, this valve is rated at 150PSI, conforming to Federal/DoD procurement standards and FAR compliance factors. Its PVC construction guarantees durability, making it suitable for a wide range of applications. Sizes range from 1/2" to 6", with outstanding Cv Factor of 3 for optimal performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A
2.25 in | 57.15 mm
Specifications B
2.30 in | 58.42 mm
Specifications Body Material
PVC
Specifications C
3.29 in | 83.57 mm
Specifications Cv Factor
3
Specifications E
3.50 in | 88.90 mm
Specifications End Connection
Flanged
Specifications F
3.87 in | 98.30 mm
Specifications G
6.72 in | 170.69 mm
Specifications H
1.70 in | 43.18 mm
Specifications Seals
FPM
Specifications Size
1/2"
