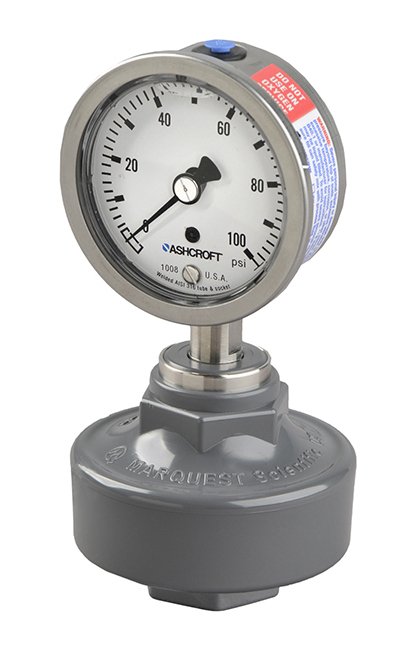

1/2" PVC Gauge Isolator w/ Viton Diaphragm & Stainless Steel Ashcroft Gauge

1/2" PVC Gauge Isolator w/ Viton Diaphragm & Stainless Steel Ashcroft Gauge

SKU:GAU-07b3cf

Protect pressure instruments with this durable PVC Gauge Isolator & Stainless Steel Gauge. Total isolation, accurate transmission, & easy maintenance.

Regular price $269.95
Regular price Sale price $269.95
Sale

Initiate Order

1/2" PVC Gauge Isolator w/ Viton Diaphragm & Stainless Steel Ashcroft Gauge

1/2" PVC Gauge Isolator w/ Viton Diaphragm & Stainless Steel Ashcroft Gauge

$269.95

Quantity: 1

Claim Your Seller Account

1/2" PVC Gauge Isolator w/ Viton Diaphragm & Stainless Steel Ashcroft Gauge

1/2" PVC Gauge Isolator w/ Viton Diaphragm & Stainless Steel Ashcroft Gauge

$269.95

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 1/2" PVC Gauge Isolator with Viton Diaphragm and All Stainless Steel Ashcroft Gauge is a durable and reliable solution for protecting and isolating pressure sensing instruments. The impermeable Viton diaphragm, reinforced instrument connection, and low profile design ensure total isolation from system media, accurate pressure transmission, and minimal maintenance. With features like an integral wrench, self-venting internal shape, and easy fill/bleed port provision, this isolator guarantees ease of use and uncompromised performance. Compliant with ANSI Schedule 120 standards, this product meets the highest industry requirements for quality and functionality.

Product Specifications

Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/2" Female NPT
Specifications Installed Gauge
0-30 PSI, All Stainless
Specifications List Price
269.95 USD
Specifications Materials
PVC, Viton Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
