1/2" PVC Simplex Basket Strainers with Flanged End Connections

1/2" PVC Simplex Basket Strainers with Flanged End Connections

STR-679742

Protect your system components with the 1/2" PVC Simplex Basket Strainers by Hayward. Reliable dirt and debris removal with durable PVC construction.

$89.99
$89.99
Sale

Initiate Order

1/2" PVC Simplex Basket Strainers with Flanged End Connections

1/2" PVC Simplex Basket Strainers with Flanged End Connections

$89.99

Quantity: 1

Claim Your Seller Account

1/2" PVC Simplex Basket Strainers with Flanged End Connections

1/2" PVC Simplex Basket Strainers with Flanged End Connections

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 1/2" PVC Simplex Basket Strainers with FPM seal and flanged end connections from the SB Series by Hayward provide exceptional protection for pipeline system components. Designed to effectively remove dirt and debris, these basket strainers feature a perforated strainer basket that traps unwanted particles while allowing smooth flow of process media. With a pressure rating of 150 psi at 70°F, these strainers are a reliable choice for applications that demand precision and durability. Available in various sizes and materials, including PVC, CPVC, and GFPP, these strainers are engineered for optimal performance and ease of maintenance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Information Additional Information

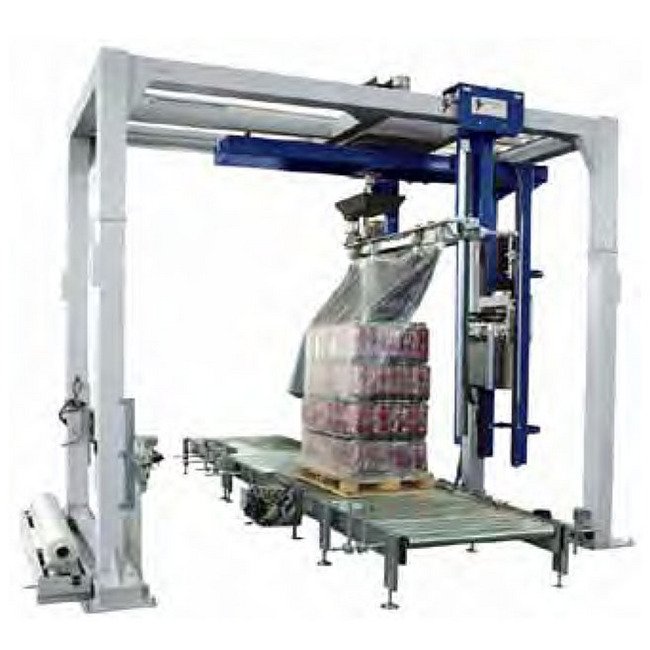

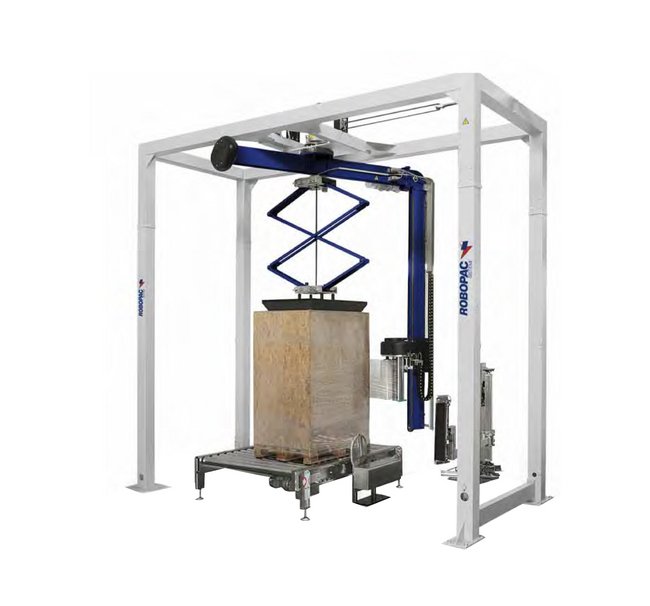

Innovative VAC motors with Encoders work with Motion Control Devices via the control panel to give you ultimate control of pre-stretch and containment force.The Helix 3 is CE Compliant and features Level 3 Safety Circuits. Light Curtains are standard, as are power and air dump interlocks providing you the safest work environment available for your operators.The system features 15 selectable wrap patterns for each of your load types. Software allows you to adjust all wrapping parameters to meet the specific needs of each load: pre-stretch; containment force (multi-level); top & bottom wraps; wrap arm rotation speed; overlap and overwrap; banding; and roping.CUBE Key Performance Data. The Helix 3's advanced technology gives you the ability to set different wrapping parameters for each product and load configuration that you produce. Allowing you to customize the wrap pattern to "set the standard" for each type of product that you wrap. Because of the accuracy of the Variable Pre-stretch and Variable Containment Force technology, we can provide accurate and actionable real time performance data. This will ensure that you are indeed "holding the standard" set for each of your products. We will guarantee the accuracy of our film usage data to within 5% plus or minus. Competitive systems consistently vary more than 30% plus or minus.TechnologySelf-Braking AC MotorsSpecial AC Motors with Encoders and Motion Control Devices deliver the most accurate pre-stretch and containment force available.Frequency DriveVariable frequency drive allows you to vary the line speed up to a maximum of 60 feet/min without replacing a single component.ConveyorsAll conveyor rollers feature reverse motion. Infeed and center feed conveyors are controlled by variable frequency driver. Self-braking motors ensure precise positioning of the pallet.Standard Roll CarriageSingle motor roll carriage with fixed pre-stretch provides you up to 12 containment force levels at different points on each load. 30-inch and jumbo roll carriages are available as options.
Maximum Load Dimensions Maximum Load Height
78.74 in
Maximum Load Dimensions Maximum Load Length
48 in
Maximum Load Dimensions Maximum Load Width
48 in
Minimum Load Dimensions Minimum Load Height
20 in
Minimum Load Dimensions Minimum Load Length
31.5 in
Minimum Load Dimensions Minimum Load Width
31.5 in
Options Options

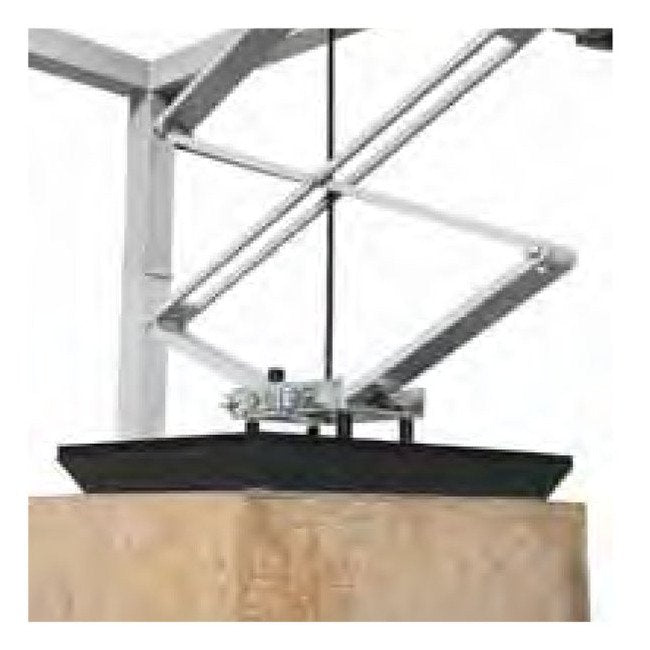

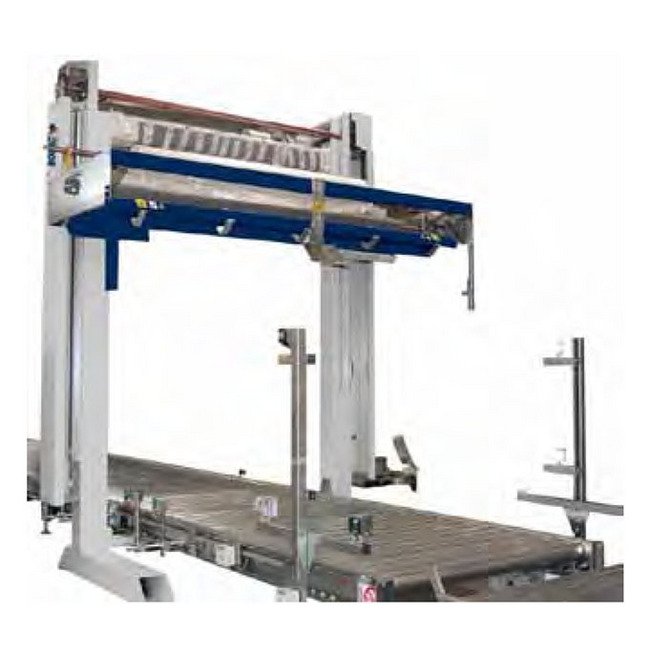

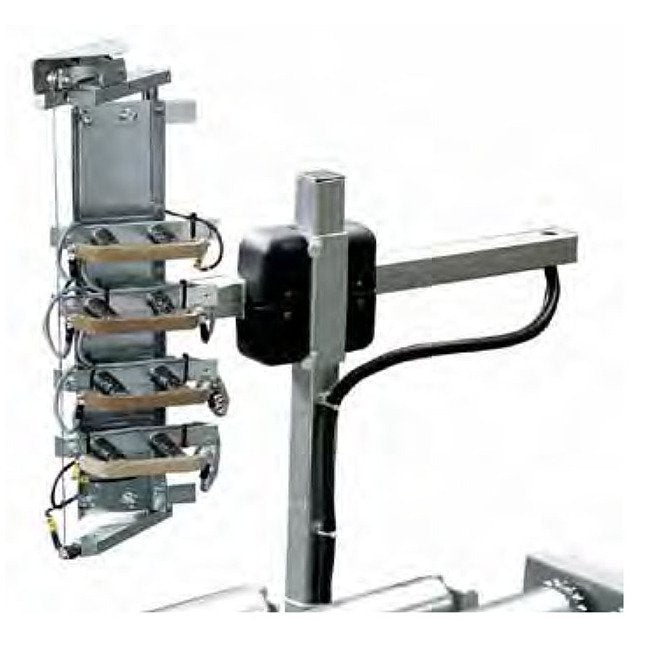

Top Pressure PlatensPneumatic Pressure PlatenPneumatic Pressure Platen provides downward pressure on top of load to help stabilize package during wrapping process.Double Diamond Pressure PlatenDouble Diamond Pressure Platen allows for a wider range of wrapping height over pneumatic version. It also reduces the amount of head space needed above the machine over the pneumatic model.Top Sheet DispensersInside DispenserPatented Inside Top Sheet Dispenser measures and disperses the correct amount of film on your load during the wrap process and is sandwiched between layers of film to create a water resistant seal.Outside DispenserPatented Outside Top Sheet Dispenser measures and disperses the correct amount of film on your load as it is conveyed into the wrapping area to create a dustproof wrap.Pallet LifterThe pallet lifter raises the pallet during the wrapping process to ensure proper placement of film or rope on a shorter pallet. You can wrap down to the very bottom or even under the pallet, depending on your needs.Roping DeviceAutomatic Roping Devices (Top, Bottom or Top & Bottom) combined with the latest in encoder technology allow you to place either partial or full web ropes of film at key points on the load or around the pallet to increase load stability.The top and bottom combination roper allows you to wrap cold loads, hot loads, fresh fruits or vegetables, or any type of load that needs to breathe.Film Clamping DevicesSpring/Ring Clamp with Horizontal MovementRing ClampMobile/Liftable Spring ClampNipper Clamp for LP-AS ModelHot Plate Welding UnitSpring Clamp
Specifications Alarm
3-Color Light Stack with Low Film Indicator
Specifications Auto Roll Changer
Available Option
Specifications Conveyor Reversing
Standard
Specifications Conveyor Roller Spacing Capacity
4400 lb
Specifications Corner Board Applicator
Available Option
Specifications Corner Compensation
Load Cell
Specifications Features
Automatic
Specifications Film Cut And Clamp
Cut | Press | Wipe
Specifications Film Test Cycle
Not Available
Specifications Fixed Standard Pre Stretch
0 to 340 %
Specifications Galvanized Conveyor Rollers
Standard
Specifications Human Machine Interface Hmi
AB Panel View 600 Plus Monochrome
Specifications Industry Standards
European Conformity (CE) Compliant | International Organization for Standardization (ISO 9001:2008)
Specifications Motors
Alternating Current (AC) Voltage Bonfiglioli Motors
Specifications Multi Level Containment Force
Up to 12 Levels on Each Load
Specifications Multi Level Pre Stretch
Not Available
Specifications Number Of Top Sheet Dispenser Options
2
Specifications Personnel Safety
Category 3 Safety Circuits with Light Curtains (CE Approved)
Specifications Positioning Control
Self-Braking Alternating Current (AC) Motors and Encoder Technology
Specifications Programmable Logic Controller Plc
AB MicroLogix 1400
Specifications Roll Carriage
Pre-Stretch Carriage with Single Motorization (PGSM)
Specifications Speed
22 rpm
Specifications Support Structure
4 Legged
Specifications Throughput
62 L/h
Specifications Top Sheet Dispenser
Inline | Mid Wrap
Specifications Type
Stretch
Specifications Warranty
3 Year + 10 Year on Ring Gear Bearing and Structural Frame
