1/2" US Style Universal Socket Weld Check Valve with 1.50 psi Standard Cracking Pressure
1/2" US Style Universal Socket Weld Check Valve with 1.50 psi Standard Cracking Pressure
SKU:USS-b0f2ad
High-quality 1/2" US Style Universal Socket Weld Check Valve with 1.50 psi Cracking Pressure for reliable performance.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
1/2" US Style Universal Socket Weld Check Valve with 1.50 psi Standard Cracking Pressure
$99.99
Quantity: 1
Claim Your Seller Account
1/2" US Style Universal Socket Weld Check Valve with 1.50 psi Standard Cracking Pressure
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

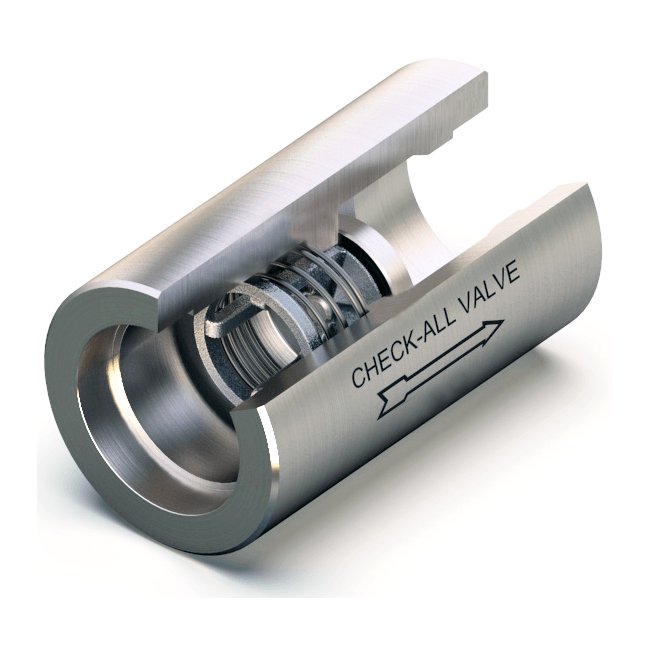

The 1/2" US Style Universal Socket Weld Check Valve with 1.50 psi Standard Cracking Pressure is a high-quality, one-piece valve precision-machined from durable materials like 316 Stainless Steel and Alloy 20. Designed for minimal pressure drop and long-term reliability, this valve offers a wide range of seat materials and cracking pressures to suit diverse applications. Its ASME/ANSI B16.11 socket ends ensure easy installation and compatibility with various systems. Additionally, it can function as a low-pressure relief valve or vacuum breaker, providing versatility for different operational needs. This American-made valve is ideal for applications requiring precision control and dependable performance.
Product Specifications
Caution
Please take sufficient measures when welding to prevent heat build-up and possible damage to the valve seat.
Note
Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.Made in USA.
Specifications Body Material
316 Stainless Steel = SS | 316L Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO
Specifications Body Material Availability
316/316L Stainless Steel (SS) - Standard | Alloy 20 (A2) - Semi-Standard | Alloy B (HB) - Contact the factory for these or other materials | Alloy C-276 (HC) - Semi-Standard | Carbon Steel (CS) - Standard | Monel® 400 or Alloy R405 - Semi-Standard
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
1/2 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
5000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
D
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
1.50 psi
Specifications Valve Style
US
