1/2 x 1/4 Needle Valve - ASME B1.20.1 Compliant
1/2 x 1/4 Needle Valve - ASME B1.20.1 Compliant
SKU:STA-f1e389
Reliable 1/2 x 1/4 Needle Valve for high-pressure systems - ASME B1.20.1 Compliant
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
1/2 x 1/4 Needle Valve - ASME B1.20.1 Compliant
$49.99
Quantity: 1
Claim Your Seller Account
1/2 x 1/4 Needle Valve - ASME B1.20.1 Compliant
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

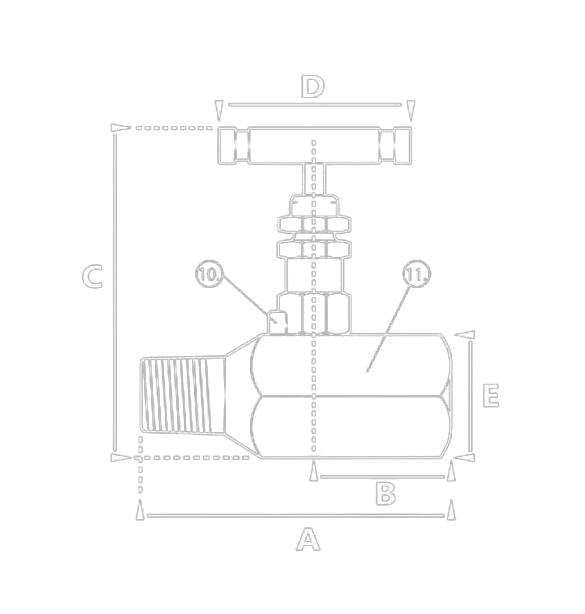

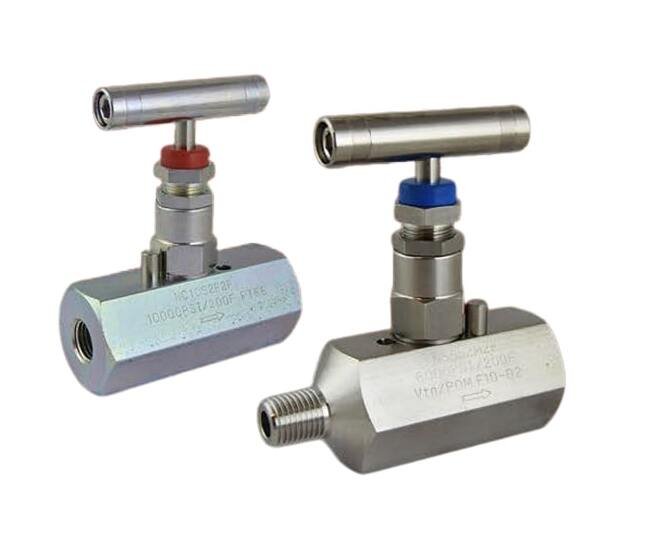

The 1/2 x 1/4 Inch Thread Size Standard Pattern Needle Valve is designed for precision flow control in high-pressure systems, with a working pressure of 10000 psi. Constructed from stainless steel with a hard seat, this valve ensures durability and reliable performance. Featuring male x female NPT thread type conforming to ASME B1.20.1 standards, it guarantees a secure and leak-free connection. With dimensions A: 3.23 in, B: 1.62 in, C: 3.54 in, D: 2.24 in, and E: 1.26 in, this valve is compact yet robust, ideal for diverse industrial applications.
Product Specifications
Features Features
Threads Conform to ASME B1.20.1
Technical Specs Dimension A
3.23 in
Technical Specs Dimension B
1.62 in
Technical Specs Dimension C
3.54 in
Technical Specs Dimension D
2.24 in
Technical Specs Dimension E
1.26 in
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B1.20.1 | National Association of Corrosion Engineers (NACE) Compliant
Technical Specs Material
Stainless
Technical Specs Seat Material
Hard Seat
Technical Specs Thread Size
1/2 x 1/4 in
Technical Specs Thread Type
Male x Female National Pipe Thread (NPT)
Technical Specs Working Pressure
10000 psi
