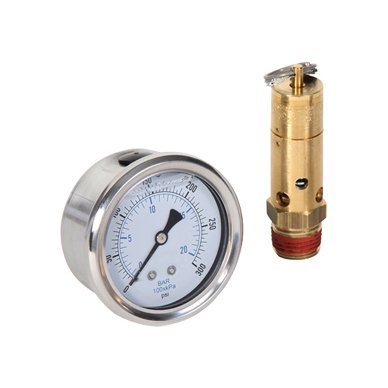

1" 200PSI Safety Relief Valve Kit with Liquid Filled Gauge
1" 200PSI Safety Relief Valve Kit with Liquid Filled Gauge
SKU:REC-8bc6a5
Ensure precise pressure regulation with our 1" 200PSI Safety Relief Valve Kit with Liquid Filled Gauge. Ideal for hydraulic systems in industrial applications.
Regular price
$109.94
Regular price
Sale price
$109.94
Unit price
per
Initiate Order
1" 200PSI Safety Relief Valve Kit with Liquid Filled Gauge
$109.94
Quantity: 1
Claim Your Seller Account
1" 200PSI Safety Relief Valve Kit with Liquid Filled Gauge
$109.94
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1" 200PSI Safety Relief Valve Kit with Liquid Filled Gauge is a top-of-the-line solution for maintaining pressure regulation in hydraulic & pneumatic systems and various commercial or industrial applications. The safety valve, with a maximum rated pressure of 200 psi, boasts precise set pressure tolerances, resilient silicone rubber pad for tight sealing, and UV & NB symbols for quality assurance. The liquid-filled gauge, with ASME Grade A accuracy, features a stainless steel case, copper alloy wetted parts, polycarbonate lens, and a dual scale for dual unit measurements. Not only does this kit ensure optimal pressure control, but it also extends the life of your equipment through vibration dampening and contaminant protection.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Connection Size
1 in
Specifications Dial Size
2.5
Specifications General Description
Safety Valve Information: ⢠Set Pressure Tolerances: ± 3% of Set Pressure ⢠Maximum Temperature: 250 F ⢠Construction: All Brass With Zinc Plated Music Wire Spring ⢠Resilient Silicone Rubber Pad Ensures Valve is Bubble Tight to Within 10% of Set Pressure ⢠Stamped With the UV and NB Symbols ⢠Loc-Tite Vibra Seal Standard The Liquid Filled Gauge Dampens the Effect of Pulsation and Vibration, While Also Perpetually Lubricating the Movement and Keeping Contaminates Such As Dirt Away From All Moving Parts Which Will Extend the Life of the Gauge. Typically Used on Hydraulic & Pneumatic Systems as Well as Any Commercial or Industrial Applications Not Corrosive to Brass and Bronze Wetted Parts Where Silicone Filling is Suitable For Use.⢠Built In Snubber ⢠Stainless Steel Case and Bezel ⢠Copper Alloy Wetted Parts ⢠Polycarbonate Lens ⢠Liquid Filled ⢠Accuracy : 2-1-2% of Span ASME B40.1 Grade A ⢠Dual Scale: PSI/Bar (x 100=kPa) Standard ⢠Ambient Temperature: Filled: 30 F to 160 F ⢠Design Meets or Exceeds ASME B40.100 Pressure Gauge Standar
Specifications Maximum Rated Flow
1624 scfm
Specifications Maximum Rated Pressure
200 psi
